Introduction
With the holidays just around the corner, there have also been an increase in the number of custom desktop computers orders for us. The increase in demand is possibly due to the launch of new games such as Crysis 3 , Assassin’s Creed 3 and DmC. Many people actually want to build their own computers, but do not have the knowledge of PC hardware or simply do not know how to fix up one. Today, we are going to solve one of the problems by recommending an affordable setup that is friendly to the wallet and yet not compromising quality and performance as a gaming system.
AMD A10 5800K APU |
Requirements
Finding the right components
Often people are under the misconception that one needs an extremely fast processor to play the performance hungry games on the market. However, that is not the case most of the time. Gamers know that the most important part of a gaming system is the graphics card. Even if a system consist of the fastest Core i7 Processor from Intel on the market, it will not work well in games without a dedicated graphics card. On the other hand, a system with a moderately slower dual core processor with a good dedicated graphics card will be able to run games much smoother compared to one without any. As a prerequisite to an effective LAN Gaming System, a dedicated graphics card is a MUST.
However, dedicated graphics cards do not come cheap. A considerably good graphics card costs at least 200SGD, which can be quite straining for someone who is looking out for a budget gaming system. Luckily, AMD came out with their innovation product – APUs to target the gamers who are on a tight budget and yet want superior performance with a dedicated graphics card.
So what is an APU? APU stands for Accelerated Processing Unit. An APU fuses a CPU core and a Dedicated Graphics Core into a single chip. In layman terms, it simply means you have a graphics processing unit within your actual computer processor, essentially removing the need to buy a considerably expensive dedicated Graphics Card. This is the only solution possible on the market for now in order to have the best of both worlds at a affordable price.
Other than selecting the APU with our build, the next important hardware to consider is the motherboard where the APU sits on. The motherboard provides additional features for the whole computer system. For example, if a motherboard has a HDMI output port, you can use a HDMI cable to connect to your monitor instead of a standard VGA cable. Any ports available on the computer is determined by the motherboard. If you are specifically looking for a certain port, make sure that the motherboard has it. Other unique features like automatic overclocking to improve performance and energy saving reduce electricity usage are also available on specific motherboards.
Our Recommendations
Type
|
Part Name
|
Justification
|
Processor
(CPU) |
AMD A10 5800K APU
|
A10 5800K is the top of the line APU from AMD. It is
a quad core processor running at a maximum of 4.2GHz which ensures that the games which we will be testing on will not be bottlenecked by the CPU. It also has a gaming friendly Radeon HD7660D Graphics Built in which makes sure that all our games will hardware accelerated. |
Motherboard
|
ASUS F2A85-M PRO
|
ASUS is the leading manufacturer for motherboards. We chose the
F2A85-M PRO because it is feature packed and comes with a 3 Year Warranty. It allows automatic overclocking so that we can push the APU to its limits and play at an even higher frame rate. Aesthetically, it will also look nice in our selected case. |
Case/Chassis
|
Cooler Master K380
|
The K380 is a budget oriented case which offers a USB3.0 port at the front panel. This can be connected to our motherboard so that we can have external access to the USB3.0 port on the
case. |
Hard Drive
|
1TB 7200RPM Seagate
|
A Seagate 7200RPM 1TB drive was chosen due to personal trusts and
preferences as Seagate drives are known to be more reliable as compared to competitors. (Note: It’s a personal preference. Other drives of the same class should perform similarly). Besides that, 1TB of space should be more than enough to store all the games and data. |
RAM
|
Kingston KVR 2x4GB
|
Kingston Value RAMs are chosen as good performing
RAMs are not worth the money as the difference in performance is insignificant. We prefer more capacity to speed, and therefore chose the cheap and widely available KVRs. |
Power
Supply |
Silverstone SST-ST50F-P
|
As the APU system will be a very simple setup with minimal hardware
parts, we want to make sure that the system runs stable and cool without many additional cables lying around. Therefore, a modular Silverstone SST-ST50F-P will be just enough for the APU usage. Extra cables can be simply removed as the PSU is modular, making our system neater and cooler due to better airflow. |
First look at the components
AMD A10 5800K APU
Chip is shown at the side of the box |
A10 5800K uses Socket FM2 and runs at 3.8GHz Base Clock , 4.2GHz Turbo |
Includes chip, Authenticity Cert, Case Badge and a Fan |
A10-5800K Chip – Diffused in Germany, Made in Malaysia |

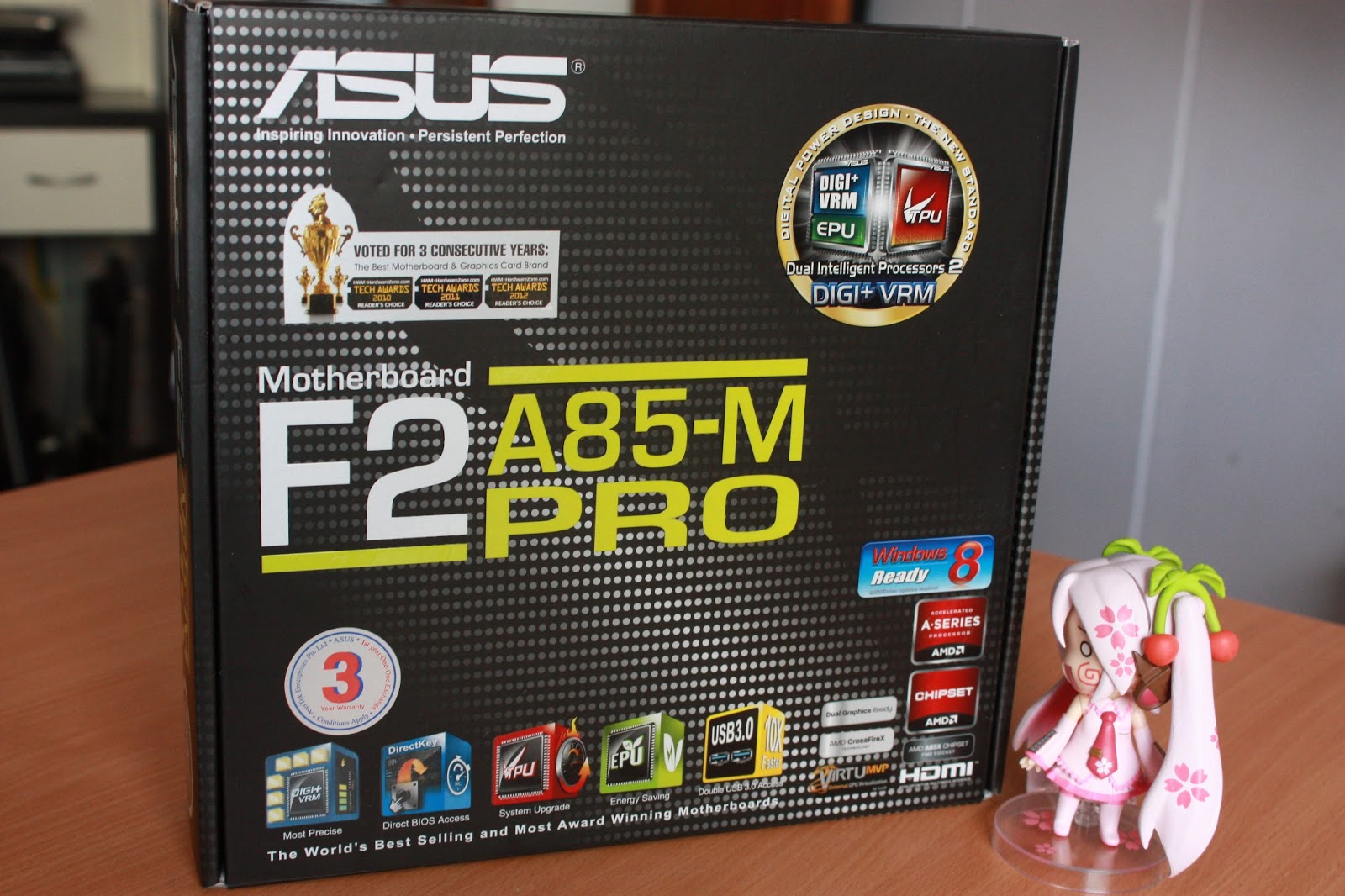

ASUS F2A85-M PRO

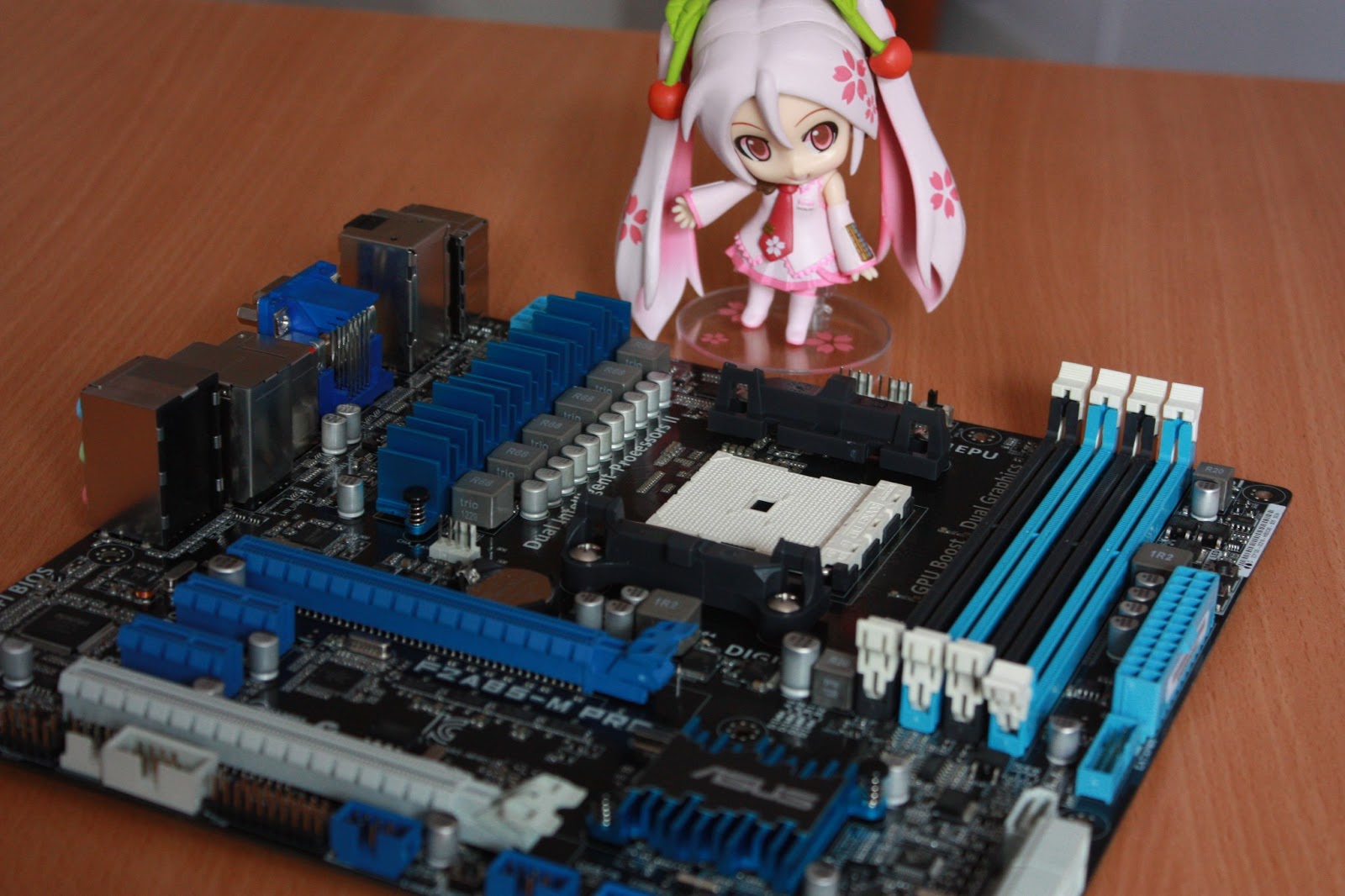

A macro look at the whole motherboard |
ASUS F2A85-M PRO is a feature packed motherboard. It consists of all the hardware features available on high end motherboards even though it is smaller than the usual ATX motherboard.
Here we have the USB3.0 Front Panel Port |
4 DDR3 DIMM Slots available |
One of the core strengths of the A85 chipset is the strong Integrated Memory Controller. Results have been shown that RAM speeds can go beyond their stock settings by overclocking the memory modules. However, as the article focuses on recommendation of a stable build, memory overclocking will not be covered. We are looking at an affordable and effective LAN Gaming System. With 4 DIMM slots available, system builders can populate these slots with cheaper smaller capacity RAMs instead.

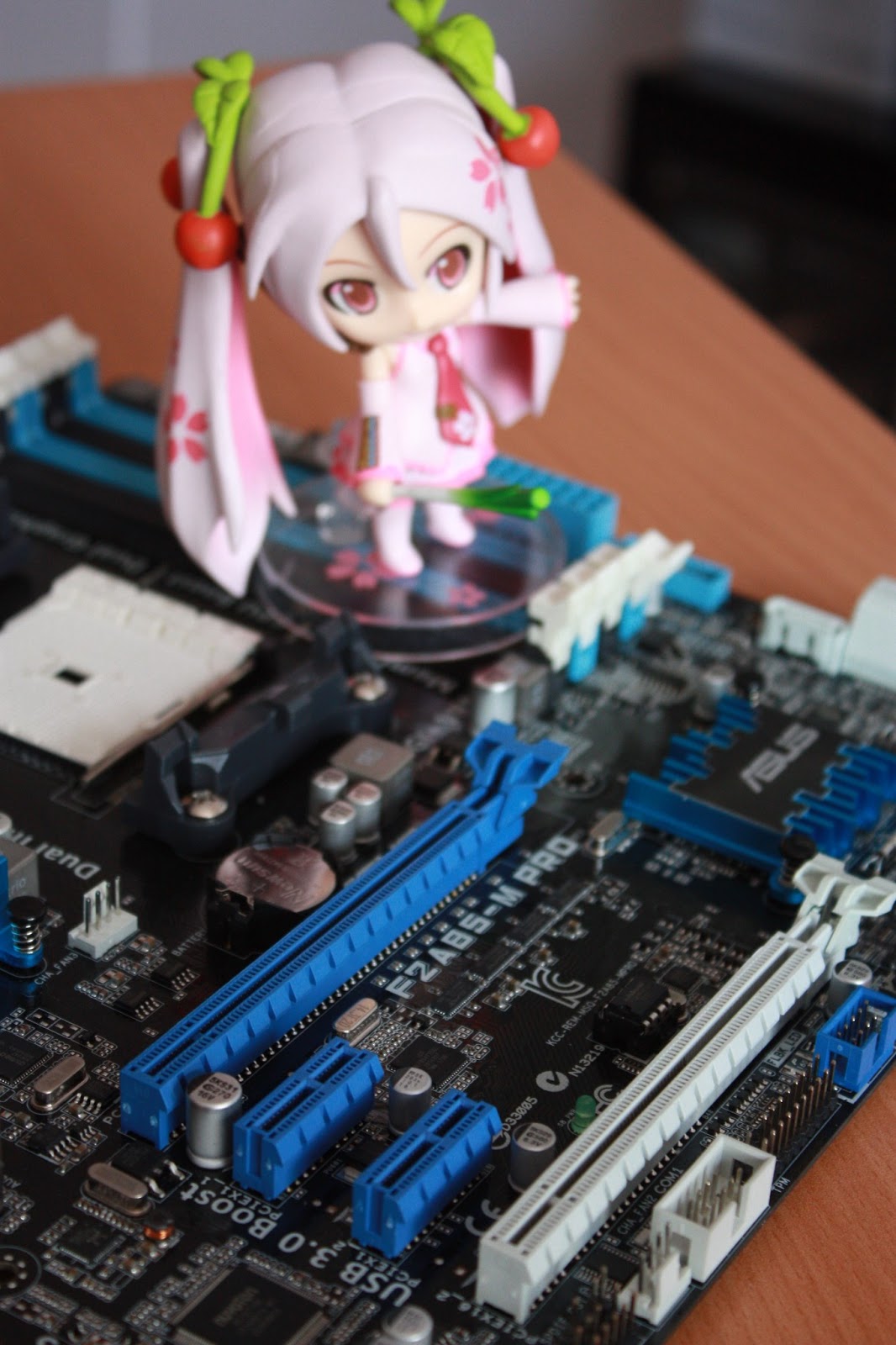

CrossFireX support |
The ASUS F2A85-M PRO has 2 PCI-Express x16 slots. However, although the white PCI-E slot is physically a x16, it is only a x8 electrically. CrossFireX is supported for GPUs to run at x8,x8 speeds. A single graphics card will run at x16 in the blue slot. We are just going to test the internal APU dedicated graphics and will not be adding any other graphics card. However, these slots are there for future expandability. If new graphics demanding games requires a better graphics card, ASUS F2A85-M PRO has got that covered.

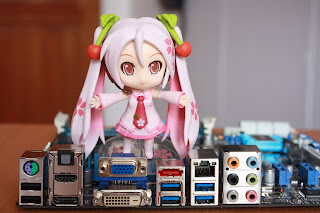

Back IO Ports |
7 SATA 6Gbps ports |
AMD A85X chipset natively supports 8 SATA 6Gbps ports, unlike Intel latest Z77 chipset which only supports 2. This allows more SSDs to be installed on the system without worrying that there is not enough bandwidth for the drives. Besides that, multiple SSD RAID 0 configuration is also possible, a feature that current Intel chipset fails to attain. If you’re wondering where is the last SATA port from the A85X chipset, it is found at one of the IO ports, disguised as a e-SATA port.

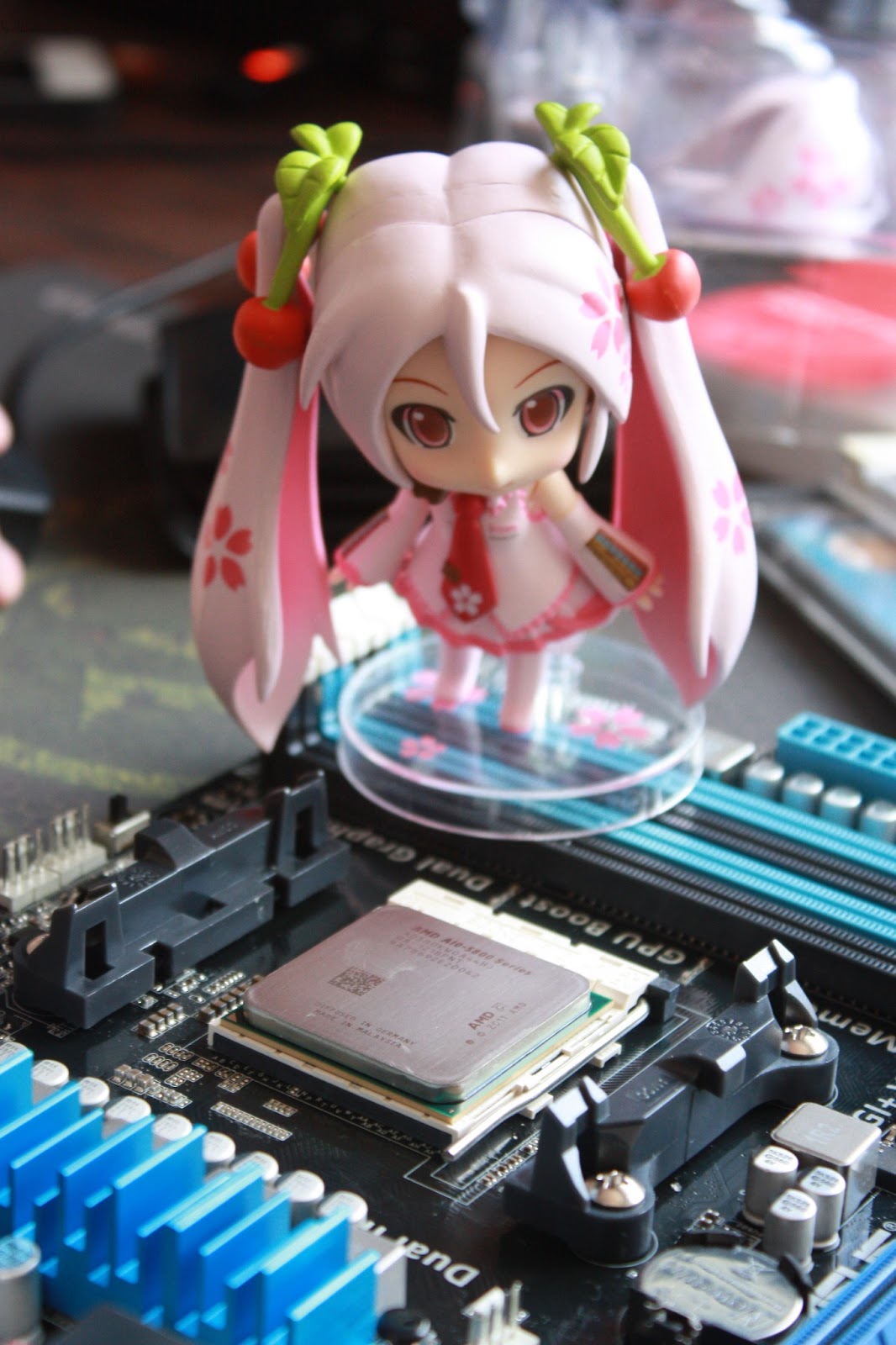

A10-5800K fits perfectly in the FM2 socket |
The CPU can be easily installed onto the motherboard by aligning the yellow arrow from the APU to the arrow on the motherboard socket.

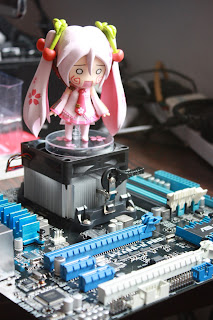

Fan installed, ready to go |
As the heat sink fan is pre-applied with thermal paste, it can be placed directly on the chip and mounted with the brackets found on the motherboard. The heat sink fan is then secured with a clip.
ASUS logo on ASUS F2A85-M PRO |
Generally, the motherboard looks refined and aesthetically unison in terms of the colour scheme. It will look nice in the case with some blue fans and lighting.
Cooler Master K380

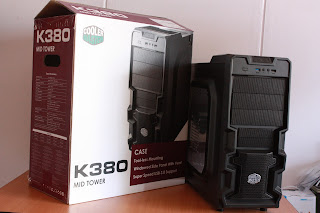

Cooler Master K380 is an affordable Mid Tower ATX case |
Left – Windowed side panel that allows installation of a fan |
Right – Convex side panel for additional cables to be hidden |
Back of K380 |
A 120mm fan can be installed at the back of K380 to exhaust hot air from the case. It also has water cooling holes to support external radiators.

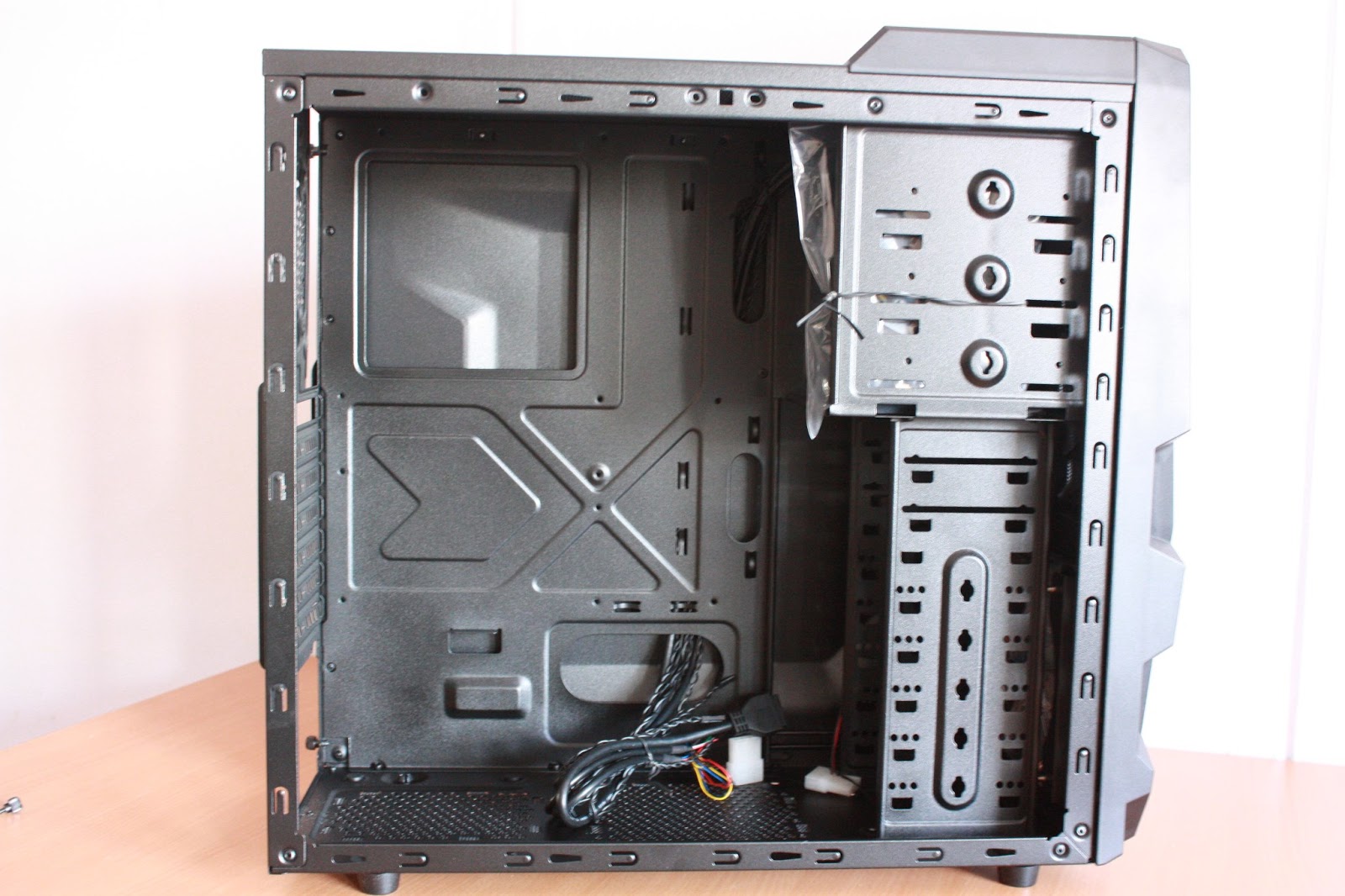

Internal of K380 |
The big hole at the CPU area on the motherboard tray on the K380 allows easy installation of 3rd party CPU coolers. Besides that, with the availability of cable management holes, cables can be tucked at the back of the case easily, making smooth airflow throughout the case and efficiently cooling the system components.
Front Intake Fan |
A front intake fan is also preinstalled in the K380. It lights up red, making the whole case seem to be a expensive case. However, trust me that the case is highly affordable and the best choice for our setup recommendation.
To be continued…
After introducing all the different parts which we will be using for our build, we will leave the performance results and the pricing of the whole system to the next article. Be sure to check out [Part 2] of our recommendation article!
