A look at the ASUS ROG CROSSHAIR VI HERO Motherboard

Introduction

We were privileged to be one of the first few in Singapore to get our hands on the new AMD Ryzen CPU for review. It was 2 days before the actual launch of the processor in the world, and most information about the new CPU were under embargo. Being a huge AMD fan-boy, I knew that I needed the best motherboard to properly test the new AMD Ryzen 7 Series CPUs. Of course, the ASUS ROG CROSSHAIR VI HERO was the natural choice for these tests.

I remember when we first started out this website, the CROSSHAIR VI EXTREME was one of the full-length motherboard reviews which we published. In this article, we will take a look at the various features of the new CROSSHAIR VI HERO with AM4 socket and see what has changed since the 890FX/990FX days.

Aesthetics

The colour theme of the CROSSHAIR series has changed. In the past, most ROG branded motherboard had a red and black theme. The current ASUS ROG CROSSHAIR IV HERO is designed with different shades of black/gray. We actually preferred the red/black combination from the past rather than the current single toned colour scheme. What do you think?

The change could be due to the inclusion of RGB LED lighting on the motherboard itself. A full black theme would better suit any colour of RGB light that the user decides to customize on the ASUS ROG CROSSHAIR IV HERO.

ASUS has gave the ROG CROSSHAIR IV HERO a very mean look. Instead of having just a bare PCB, the left side of the motherboard is protected with a shroud that adds an additional sophistication to the overall design. We do not see any other physical advantage of the shroud other than providing additional aesthetics.

The MOSFETS and VRM area of the motherboard are cooled with a uniquely designed heatsink that integrates with the whole look of the motherboard. The AMD chipset on the motherboard also has a dedicated heatsink for heat dissipation.

Specifications

The X370 is the enthusiast level high end chipset from AMD. It features the most number of features right out of the box, such as native USB 3.1 Gen 2 directly from the chipset, overclocking and PCI Bifurcation (Supports CrossFire X and SLI).

CPU	AMD AM4 Socket for AMD Ryzen Processors
Chipset	AMD X370
Memory	2 x DIMM, Max 64GB DDR4 3200(OC)/2666/2400/2133MHz Non-ECC, Un-buffered Memory
Multi-GPU Support	2-Way SLI CrossFireX
Expansion Slots	2 x PCIe 3.0/2.0 x16 (or dual x8) 1 x PCIe 2.0 x16 (x4 Mode) 3 x PCIe 2.0 x1
Storage	1 x M.2 8 x SATA 6Gbps with RAID Support
LAN	Intel I211-AT
Audio	ROG SupremeFX 8 Channel HD Audio S1220

I/O Interfaces

Of course, the new ASUS ROG CROSSHAIR VI HERO Motherboard supports the latest AMD Ryzen CPUs with the new AM4 Socket. This motherboard supports both AM3 and AM4 CPU cooler, as both mounting holes are available on the motherboard.

It has 4 x DDR4 slot that supports up to 64GB of memory in total. With the Ryzen 7 series CPU, and the right memory modules, users can overclock their memory up to 3200MHz (or even higher).

That’s quite a number of USB Ports. Firstly, starting from the left, there is the CLRCMOS and BIOS Flashback buttons. Moving on, there are 4 x USB 3.0 ports, 4 x USB 2.0 ports and aother 4 x USB 3.0 ports. Subsequently, there is a Gigabit LAN port, USB 3.1 Type A port and USB 3.1 Type C port. Last of all, the motherboard also has its 8 Channel Audio out and 1 x Optical S/PDIF out.

The ASUS ROG CROSSHAIR VI HERO has 8 x SATA 6Gbps ports that supports RAID 0,1 and 10.

The motherboard supports CrossFire X and SLI, and thus requires multiple PCIe x16 slots. The first two PCIe x16 slots from the top are specifically used for graphics card. These slots are also strengthened with metal to prevent any damaged to the motherboard due to accidents from PCIe expansion card. ASUS calls them the SafeSlot.

There’s 2 x PCIe x16 slots that can run in x16 or dual x8 mode. The last PCIe x16 slot at the bottom only runs at x4 mode electrically. Other than that, the motherboard also features 3 x PCIe x1 slots.

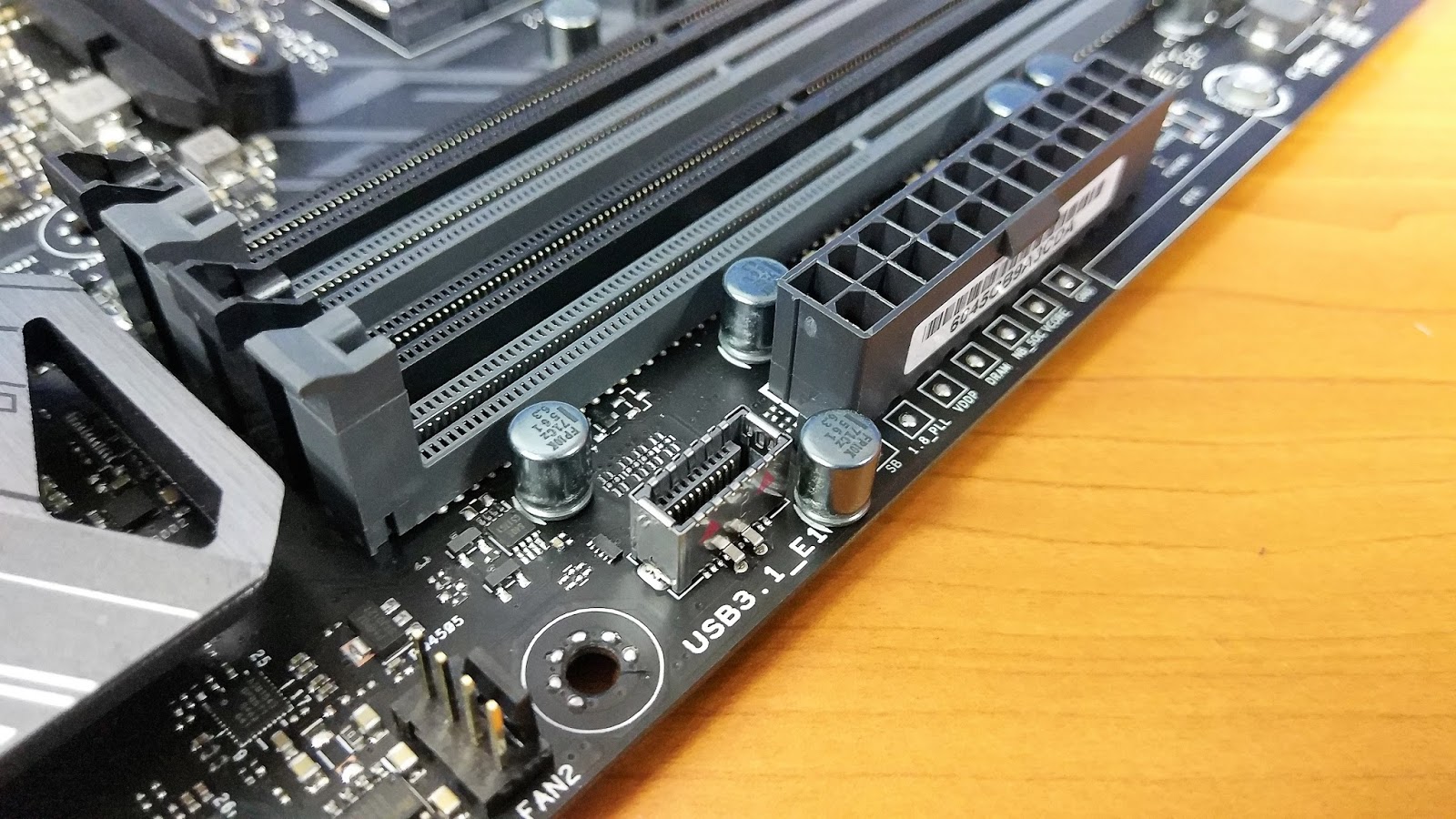

ASUS has also integrated a new USB 3.1 front header panel on this motherboard. USB 3.1 front panel ports are not common as of now, but more products and computer cases should be able to use the new feature in the near future.

Power Features

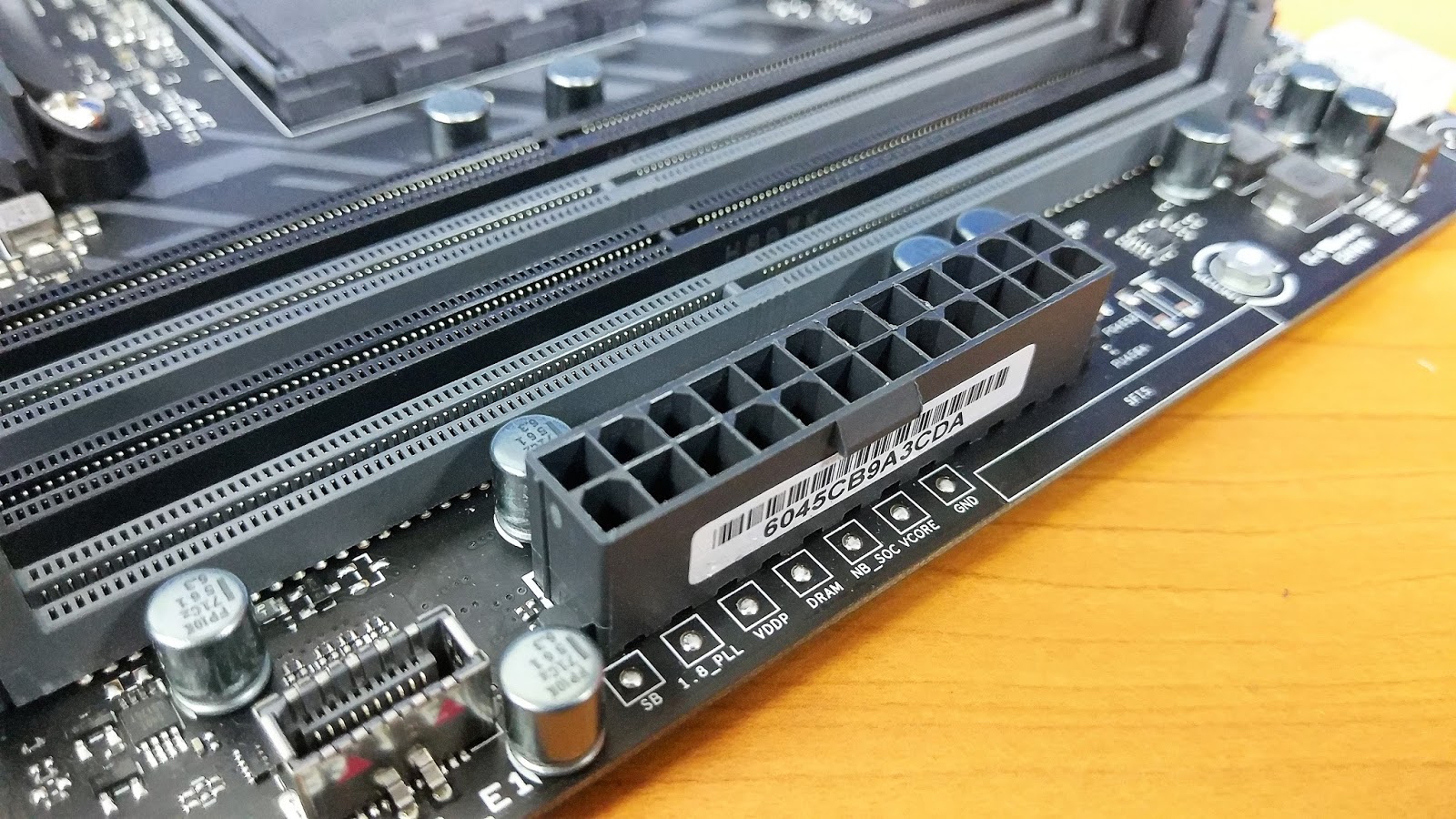

The ASUS ROG CROSSHAIR VI HERO has an additional optional 4 pin connector on top of the 8 pin that caters for additional power draw for the motherboard/CPU. This additional power to the motherboard could be useful for extreme overclockers when pushing the system to its limits.

The CPU is powered with a Digital 8 Phase Power Design with ASUS’s proprietary Extreme Engine Digi+ power controller. There is an additional 4 phase power design for the SoC and 2 phase for DRAM.

Overclocking Features

Being a Republic of Gamers motherboard, the ASUS ROG CROSSHAIR VI HERO is made specifically for overclockers. We have seen world records broken from this motherboard with the new AMD Ryzen processors. Here are the features that are catered specifically for this niche group of users.

The motherboard features Q-LED and Q-Code for easy debug of the CPU and motherboard. Moreover, there are also onboard buttons to make debugging and overclocking on this platform easy.

The onboard power-on/reset, Safe Boot, Retry, BIOS Flashback and Clear CMOS buttons are some examples.

Gaming Features

Network

The ASUS ROG CROSSHAIR VI HERO features the high performing Intel I211-AT ethernet controller. It offers very high network packet throughputs, allowing a lag free experience for gamers. With the GameFirst IV software, users can even tune and prioritize their gaming network packets to ensure that they have the unfair advantage.

Audio

ASUS has specially selected core audio components to enhance the audio experience on the ASUS ROG CROSSHAIR VI HERO. The new generation of SupremeFX comes with the new S1220 codec for great signal to noise ratio as compared to other solutions. It uses special “De-pop” MOSFET to minimize pop noises and also allow both the front and rear panels audio jacks to determine the impedance of your headphones, thus providing the adequate amplification. There is also a dedicated ESS9023P DAC onboard for superior sound form conversion.

With all the great hardware, ASUS has also integrated great software to better utilize these features.

Sonic Studio III and Sonic Radar III are two main audio software that are coupled with the motherboard. These softwares allow gamers to better customize their own preferred audio profile, and to also have an advantage when it comes to games, such as being able to find out where their enemies are in-game, with the audio signals.

Final Words

The ASUS ROG CROSSHAIR VI HERO motherboard never fails to impress. It has inherited many features from the newer ROG motherboard lineup, despite being out of the market for more than 4 years. Our performance tests on the motherboard were phenomenal, as we were able to bring our CPU to high overclocks of beyond 4GHz. It seems that the ASUS ROG CROSSHAIR legacy shall continue…
