The state of AMD’s 2024 products now
AMD’s Ryzen 9000 series was launched with mixed reactions. Many thought that AMD had exaggerated their performance improvement claims, as numbers produced from reviews couldn’t quite match up to official numbers. We had similar sentiments with our reviews too and expected more from this generation’s release. Thankfully, it seems that with optimization from Microsoft with the Windows 11 24H2 update, most of the performance issues were resolved.
Brand new X800 series chipset motherboards
Announced together with the new AMD Ryzen 9000 series desktop processors are the new AMD chipsets, which includes the X870E, X870, B850 and B840. While the new Ryzen 9000 series processors are still supported on the older X600 series chipsets, the new X800 series chipsets do bring some new features. The table below shows the key differences across all the various AMD chipsets.
| Direct Processor PCIe® Lanes | Chipset-Provided USB and SATA | |||||||||
| GRAPHICS | NVMe (PLUS PCIe™ GPP, UP TO) | USABLE PCIe® LANES TOTAL/PCIe® 5.0(UP TO) | RYZEN PROCESSOR OVERCLOCKING ENABLED | DDR5 MEMORY OVERCLOCKING ENABLED (Supports AMD EXPO™) | SUPERSPEED USB 5Gbps (UP TO) | SUPERSPEED USB 10Gbps (UP TO) | SUPERSPEED USB 20Gbps (UP TO) | MAXIMUM SATA PORTS (OR PCIe® 3.0, UP TO) | USB 4.0 | |
| X870E | 1×16 or 2×8
PCIe® 5.0 |
1×4 PCIe® 5.0 plus 4x PCIe® GPP | 44/24 | Yes | Yes | 2 | 12 | 2 | 8 | STANDARD |
| X870 | 1×16 or 2×8
PCIe® 5.0 |
1×4 PCIe® 5.0plus 4x PCIe® GPP | 36/24 | Yes | Yes | 1 | 6 | 1 | 4 | STANDARD |
| B850 | 1×16 or 2×8
PCIe® 4.0 |
1×4 PCIe® 5.0 | 36/4 | Yes | Yes | 1 | 6 | 1 | 4 | Optional |
| B840 | 1×16
PCIe® 4.0 |
1×4 PCIe® 4.0 | 34/0 | No | Yes | 2 | 2 | – | 4 | Optional |
| X670E | 1×16 or 2×8
PCIe® 5.0 |
1×4 PCIe® 5.0 plus 4x PCIe® GPP | 44/24 | Yes | Yes | 2 | 12 | 2 | 8 | Optional |
| X670 | 1×16 or 2×8
PCIe® 4.0 |
1×4 PCIe® 5.0 plus 4x PCIe® GPP | 44/8 | Yes | Yes | 2 | 12 | 2 | 8 | Optional |
| B650E | 1×16 or 2×8
PCIe® 5.0 |
1×4 PCIe® 5.0 plus 4x PCIe® GPP
|
36/24 | Yes | Yes | 1 | 6 | 1 | 4 | Optional |
| B650 | 1×16 or 2×8
PCIe® 4.0 |
1×4 PCIe® 4.0 (PCIe® 5.0 Optional) | 36/0 | Yes | Yes | 1 | 6 | 1 | 4 | Optional |
| A620 / A620A | 1×16
PCIe® 4.0 |
1×4 PCIe® 4.0 | 32/0 | No | Yes | 2 | 2 | – | 4 | Optional |
The key differences lie in the number of PCIe 5.0 lanes and USB 4.0 support. The wise ones will know that in fact, you will be expecting the same kind of performance regardless if you are using a X600 or X800 series motherboard. Ultimately, it boils down to how each motherboard manufacturer designs their products to best bring out the performance of the new AMD 9000 series processors. The pragmatic one will know that if a X600 series motherboard s more affordable, then perhaps it’s a more sensible choice.
We all know that it could be tempting to always go for the latest, but with such little differences, it could be hard to justify. This time, we’ve got both the ASUS TUF GAMING X870-PLUS WIFI and X670-PLUS WIFI up for comparison. What are the main differences and impacts between different generations of motherboards? Let’s find out.

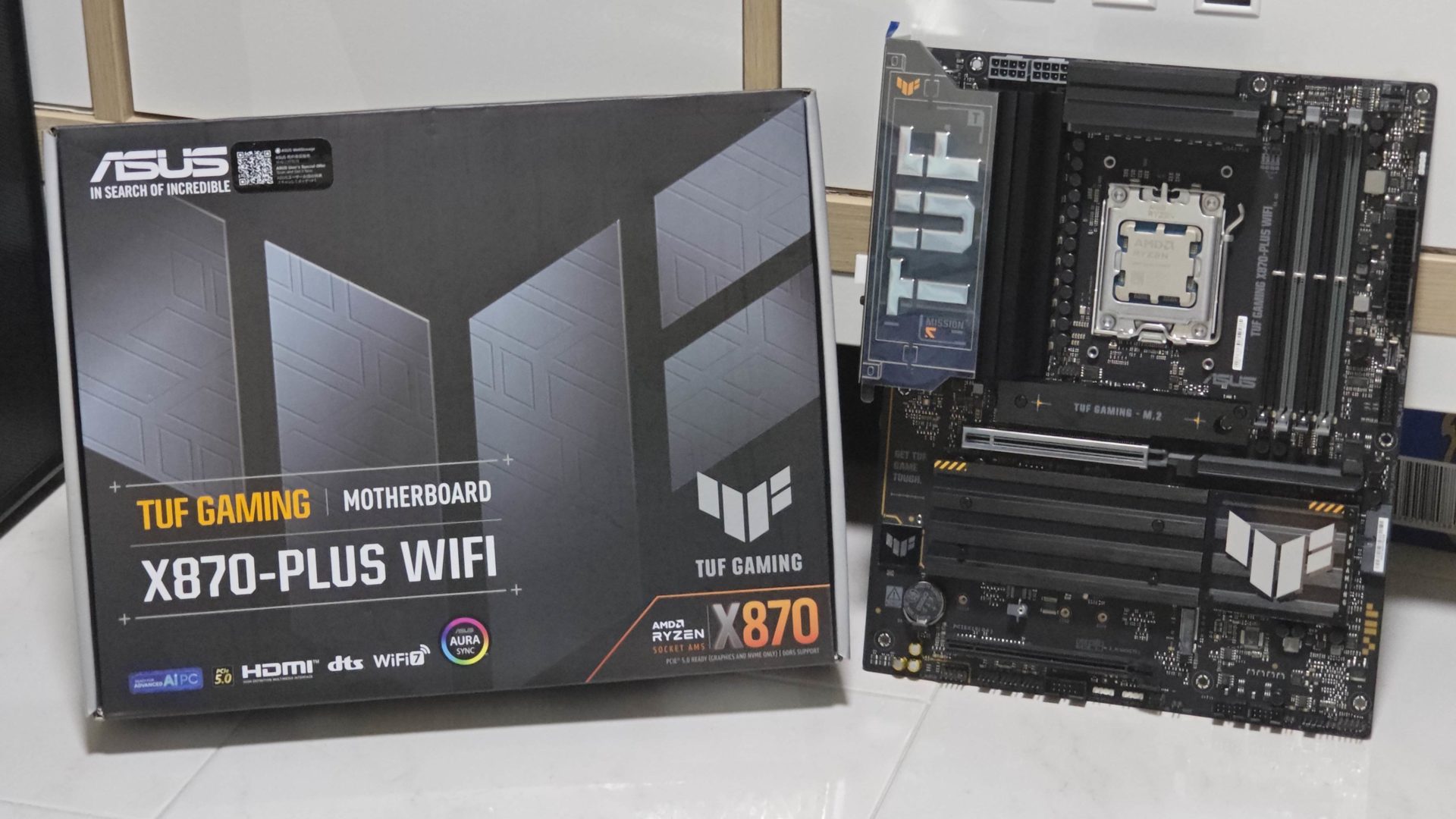

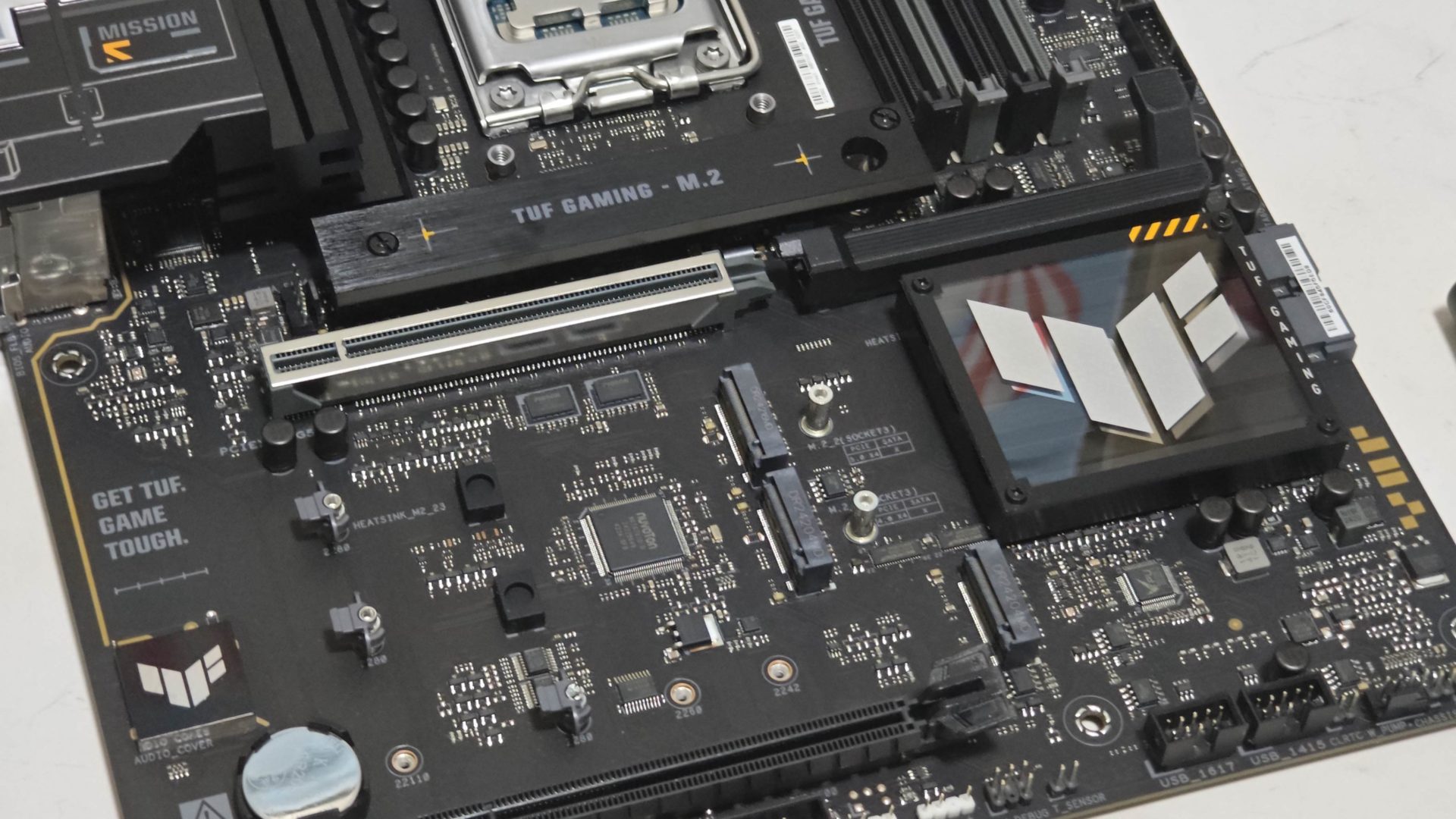

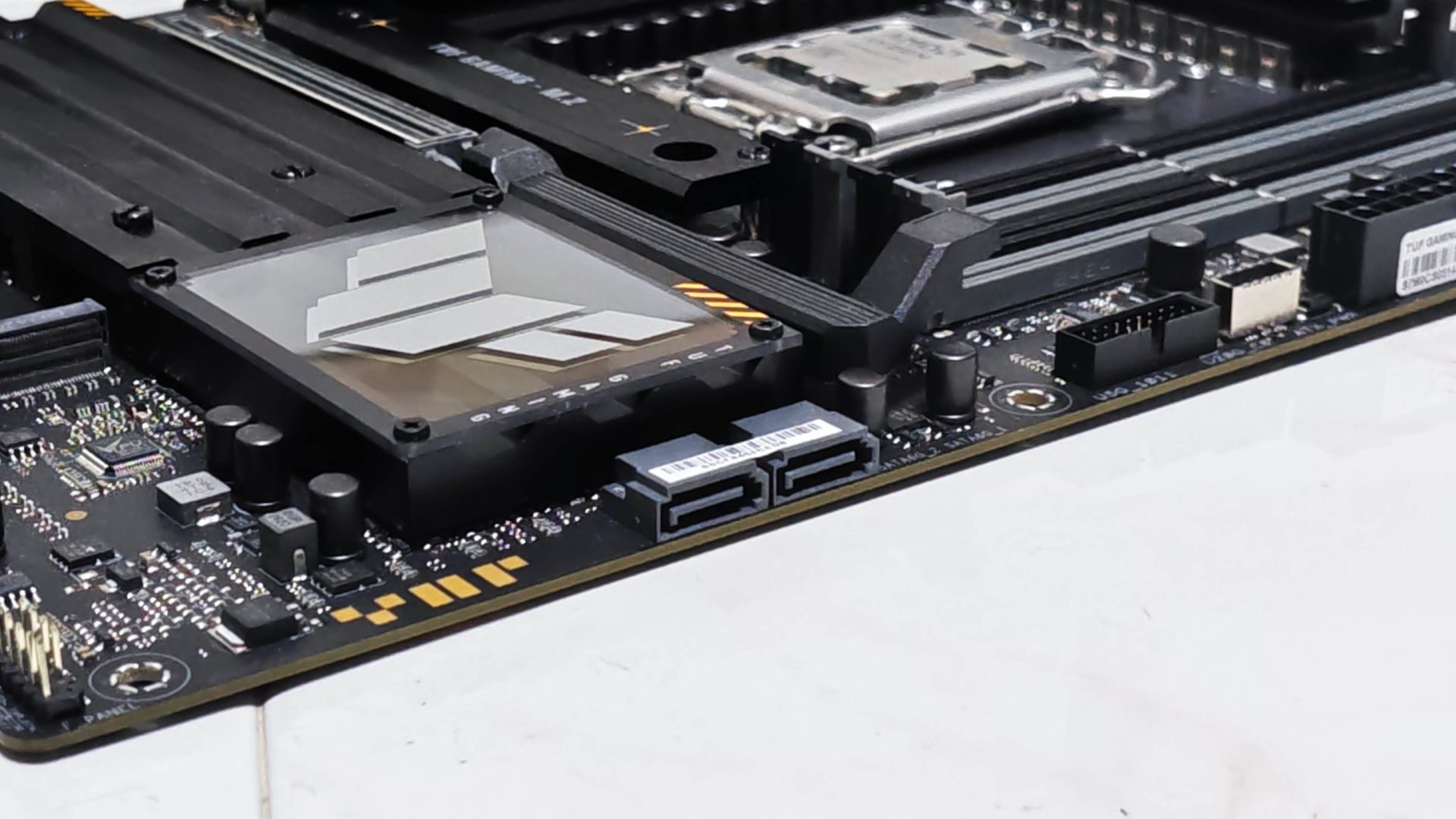

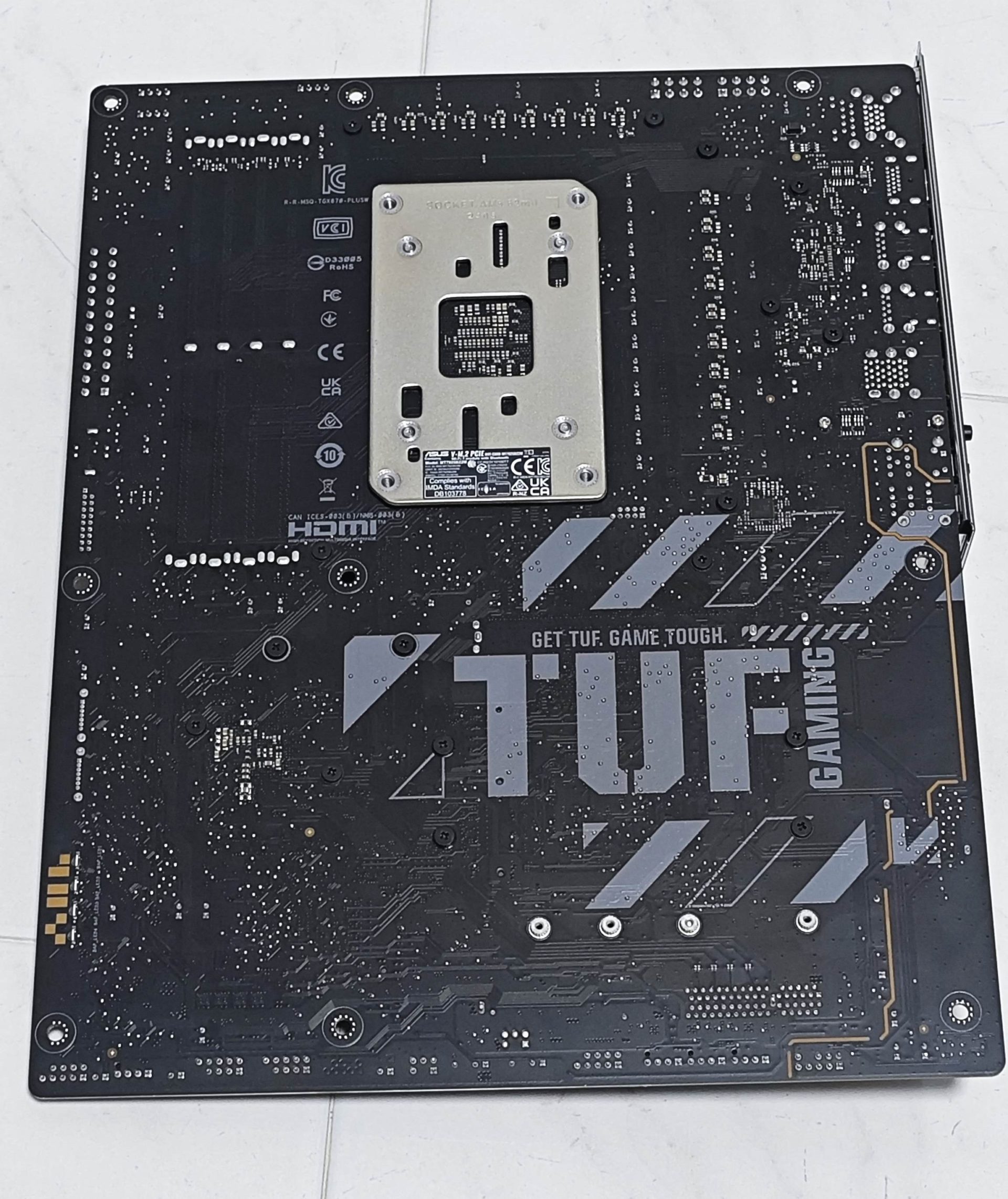

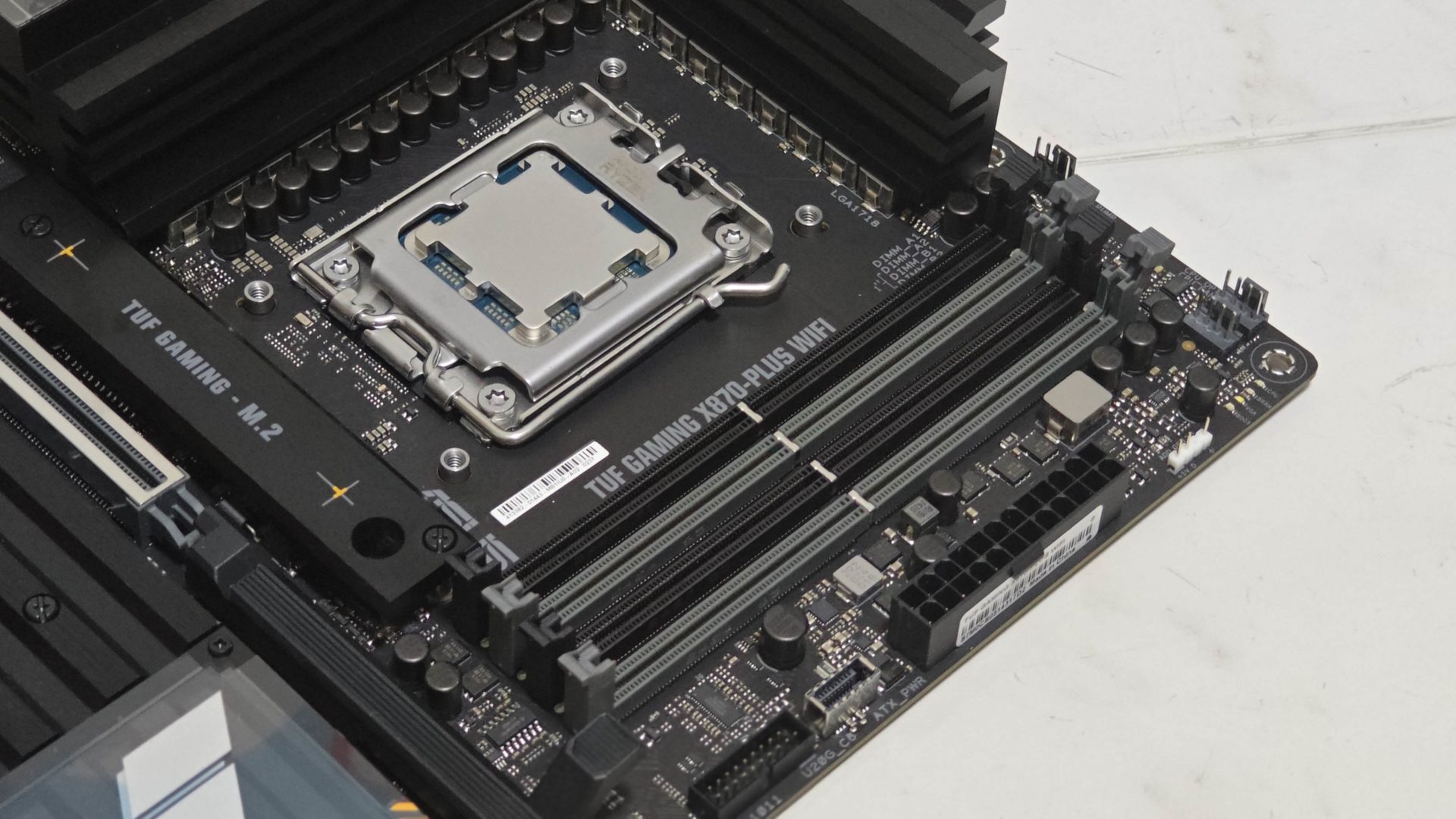

ASUS TUF Gaming X870-PLUS WIFI
ASUS has built a reputation for creating durable and feature-rich motherboards that cater to both gamers and PC enthusiasts. With the TUF Gaming X870-PLUS WIFI, ASUS aims to deliver a balance of performance, reliability, and value, designed specifically for the latest AMD Ryzen processors. This motherboard not only embodies the ruggedness associated with the TUF (The Ultimate Force) branding but also incorporates modern connectivity and advanced cooling solutions, making it an ideal choice for gamers and content creators alike.
Built on the powerful AMD X870 chipset, the TUF Gaming X870-PLUS WIFI is packed with features that enable high-speed connectivity, robust performance, and an exceptional gaming experience. Its design emphasizes durability and stability, ensuring long-term performance even under demanding workloads. Let’s dive into its key features to see what makes this motherboard a standout choice.
Key Features of the ASUS TUF Gaming X870-PLUS WIFI:

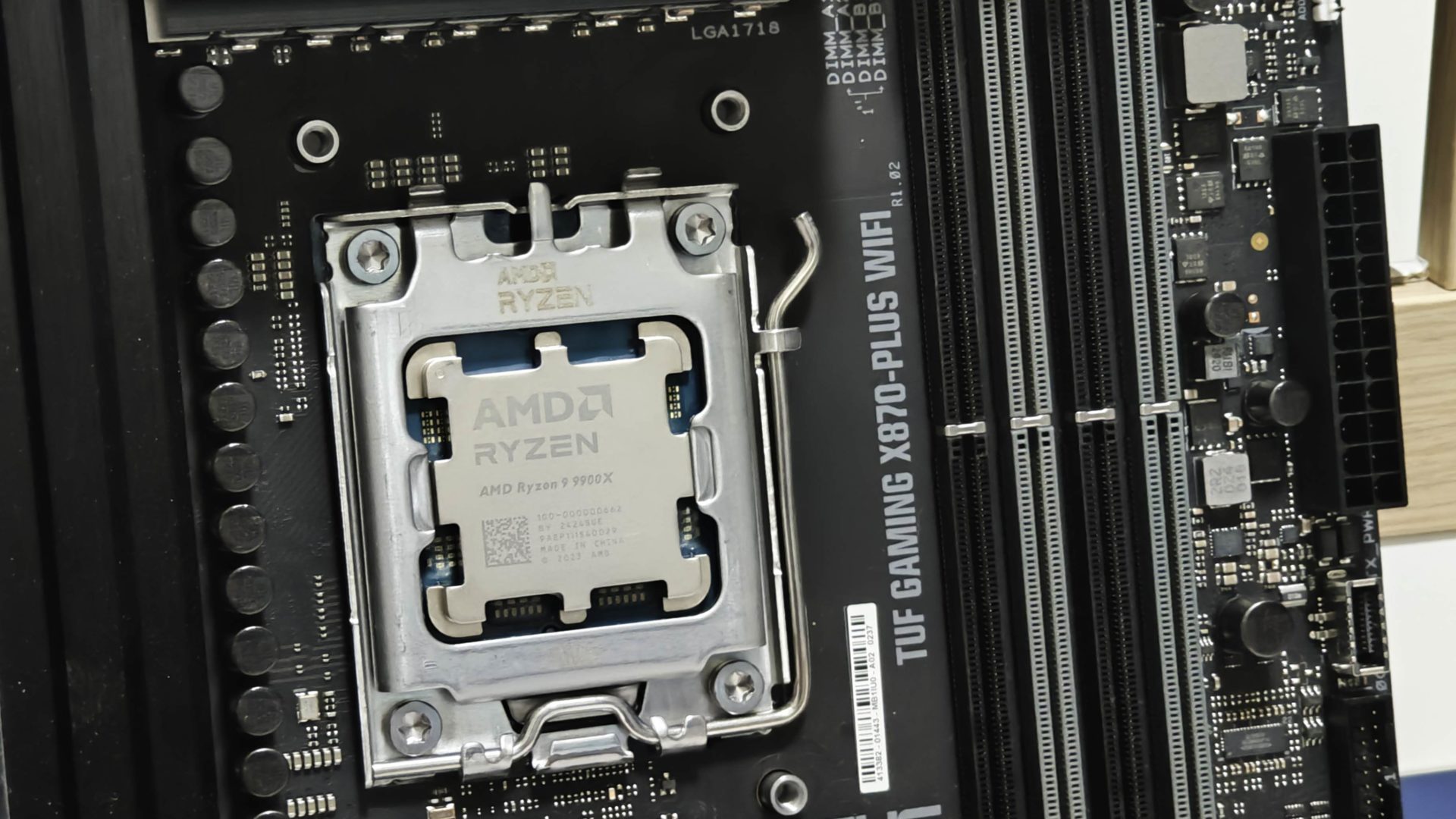

- Support for the Latest AMD Ryzen Processors: Optimized for AMD Ryzen 7000 Series CPUs, the TUF Gaming X870-PLUS WIFI offers robust performance and support for PCIe 5.0 on the graphics and storage lanes, enabling unparalleled speeds for next-gen components.

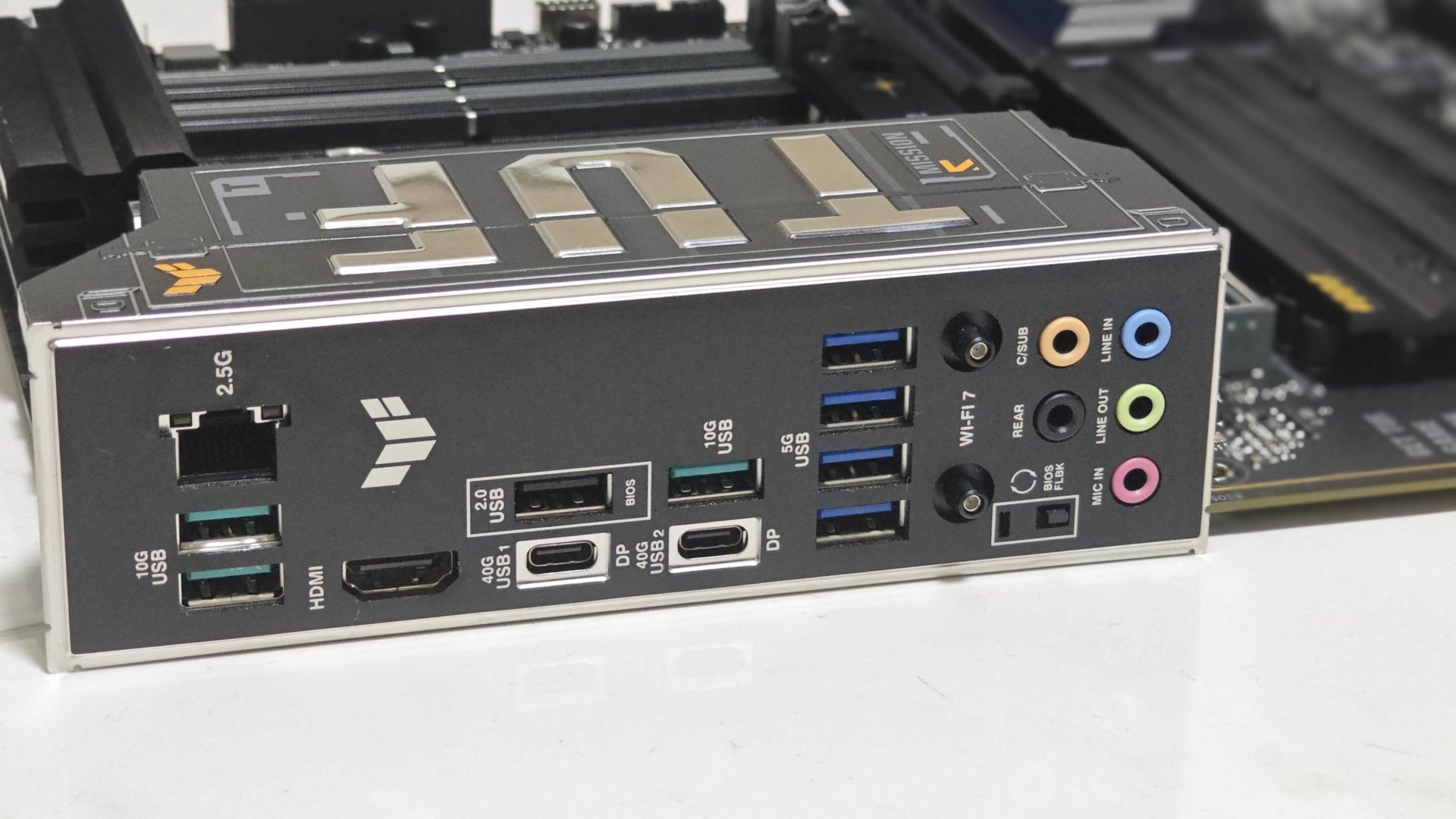

- Enhanced Connectivity: Equipped with Wi-Fi 7 and Intel 2.5Gb Ethernet, the motherboard ensures fast, reliable network connections for gaming, streaming, and multitasking. USB 4 support further enhances its future-proof connectivity.

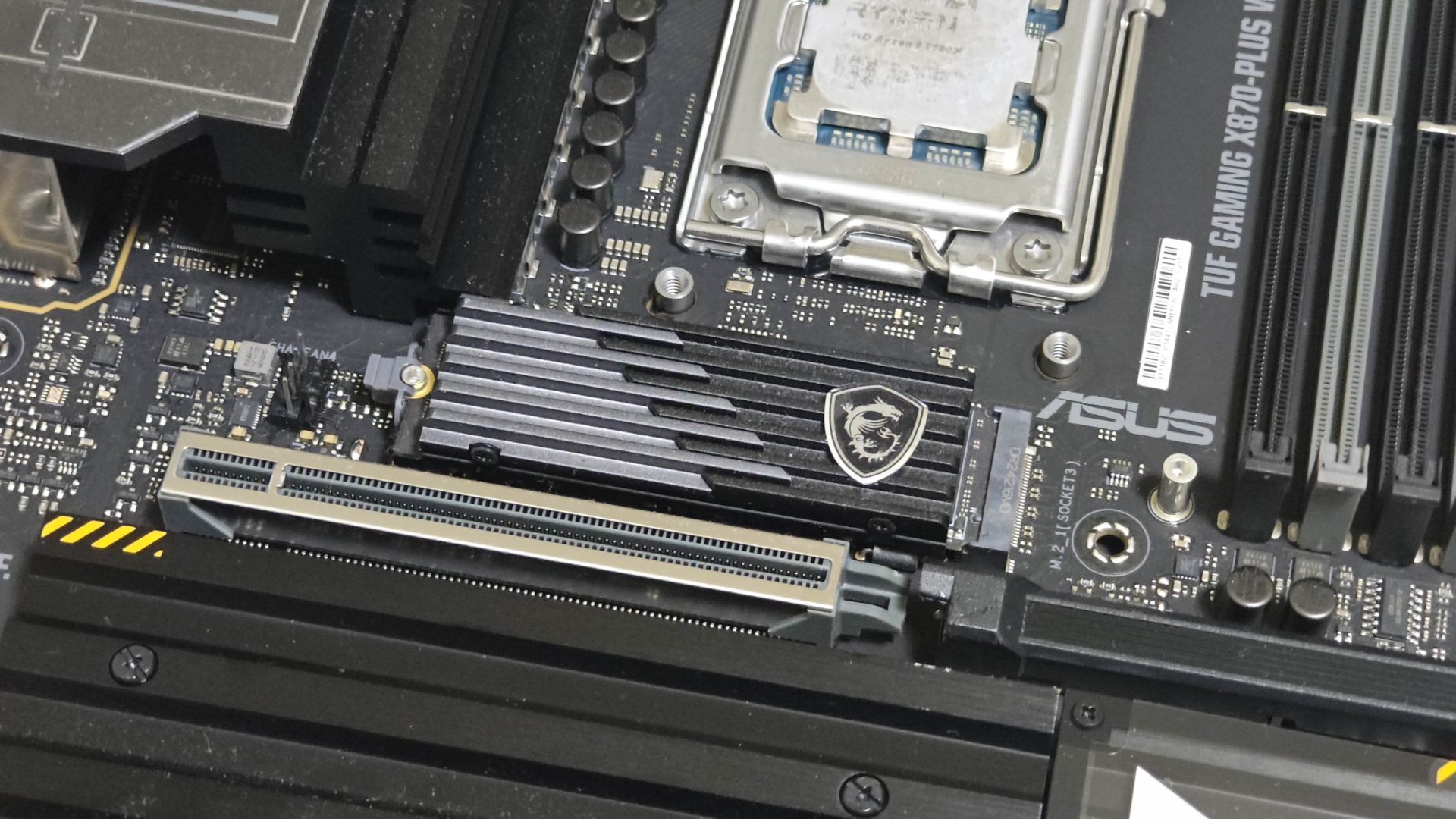

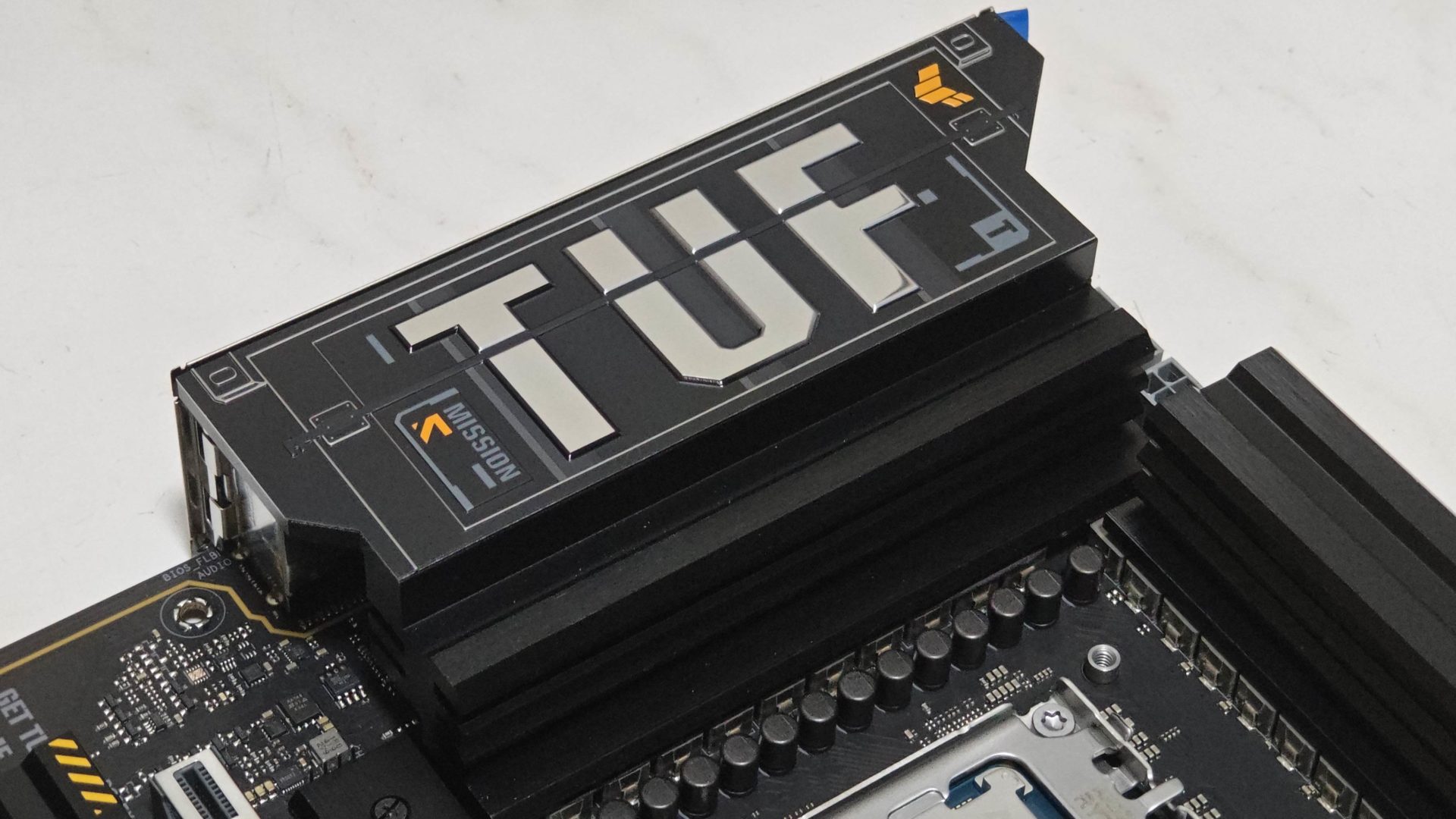

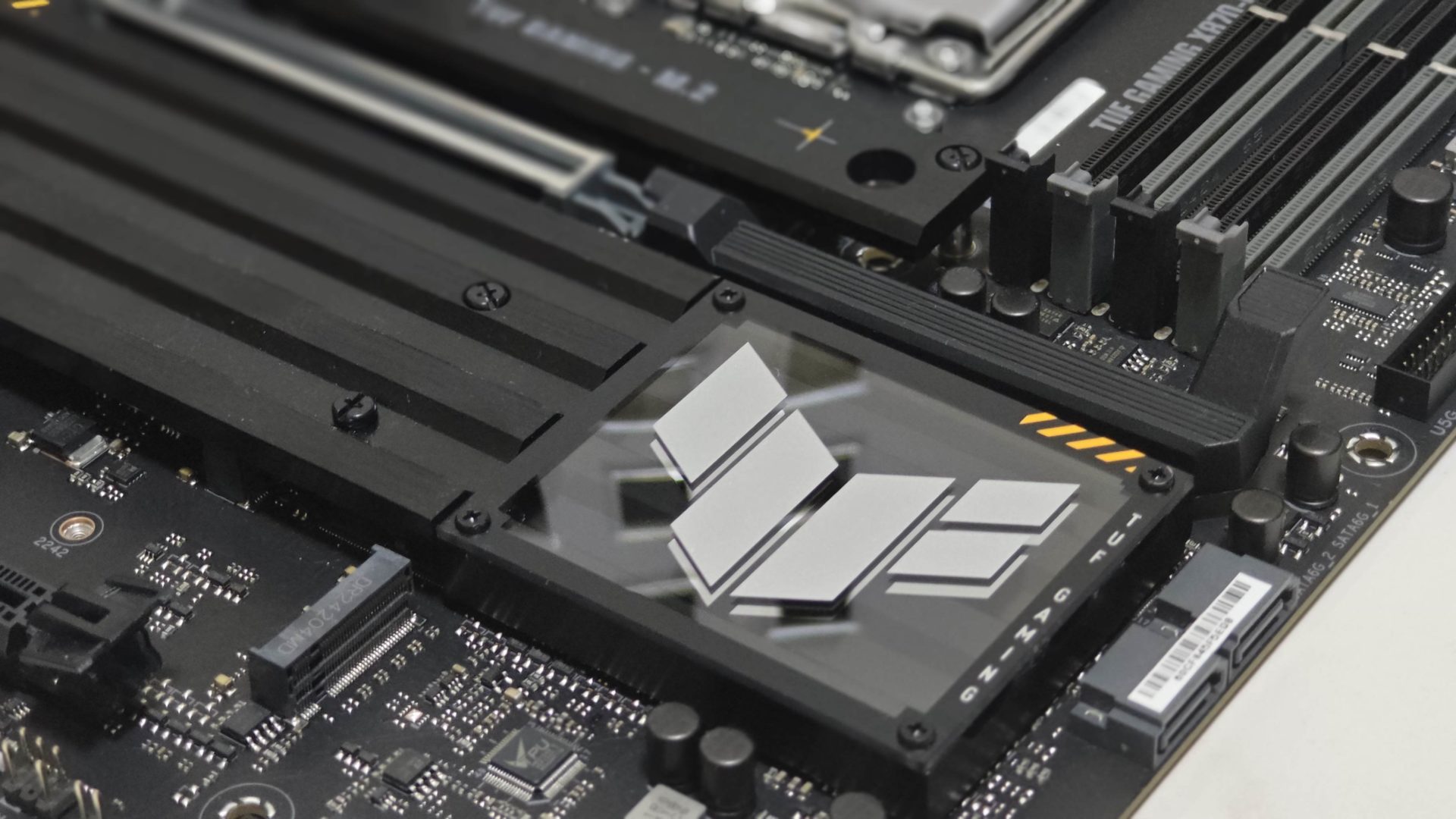

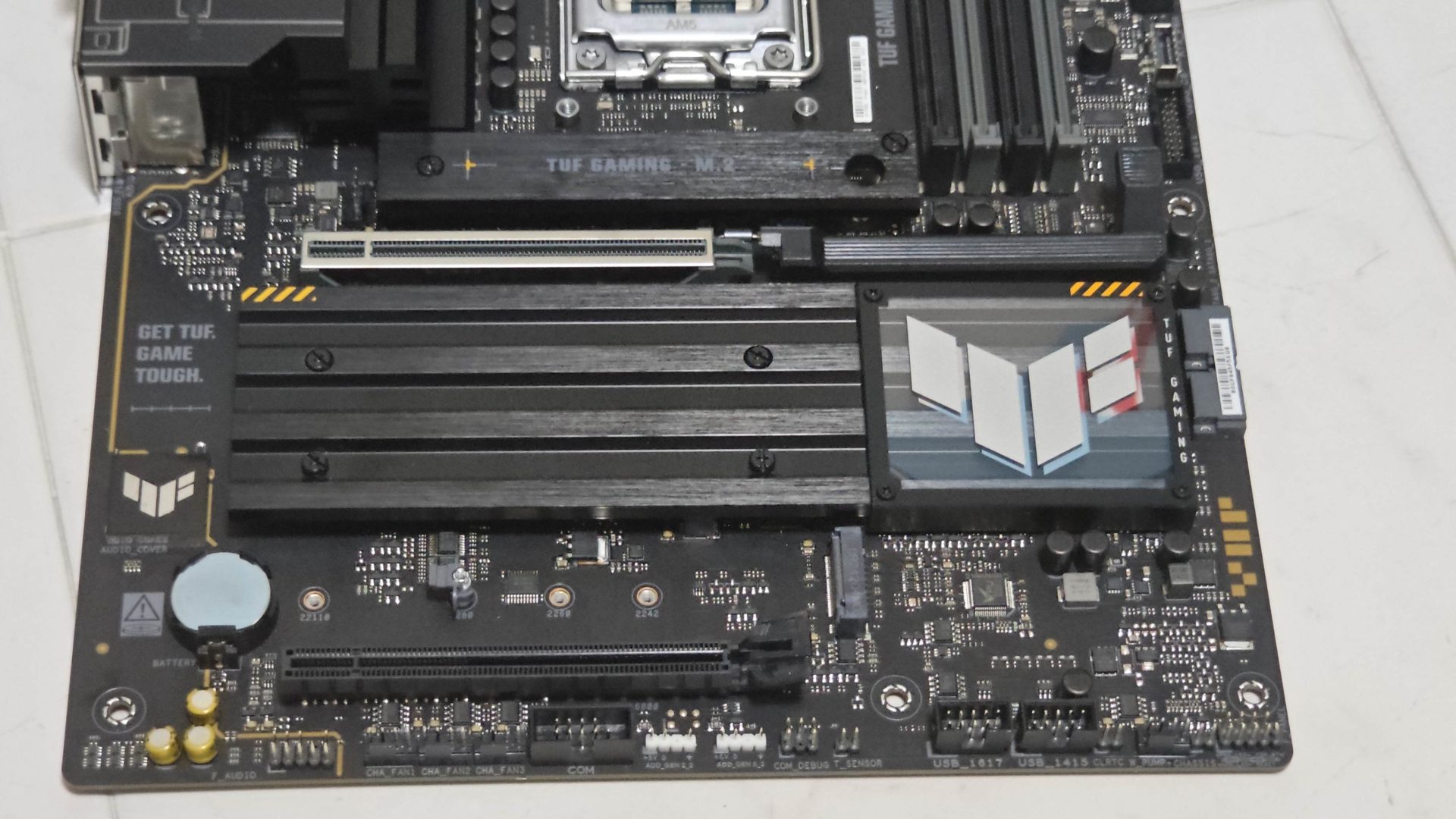

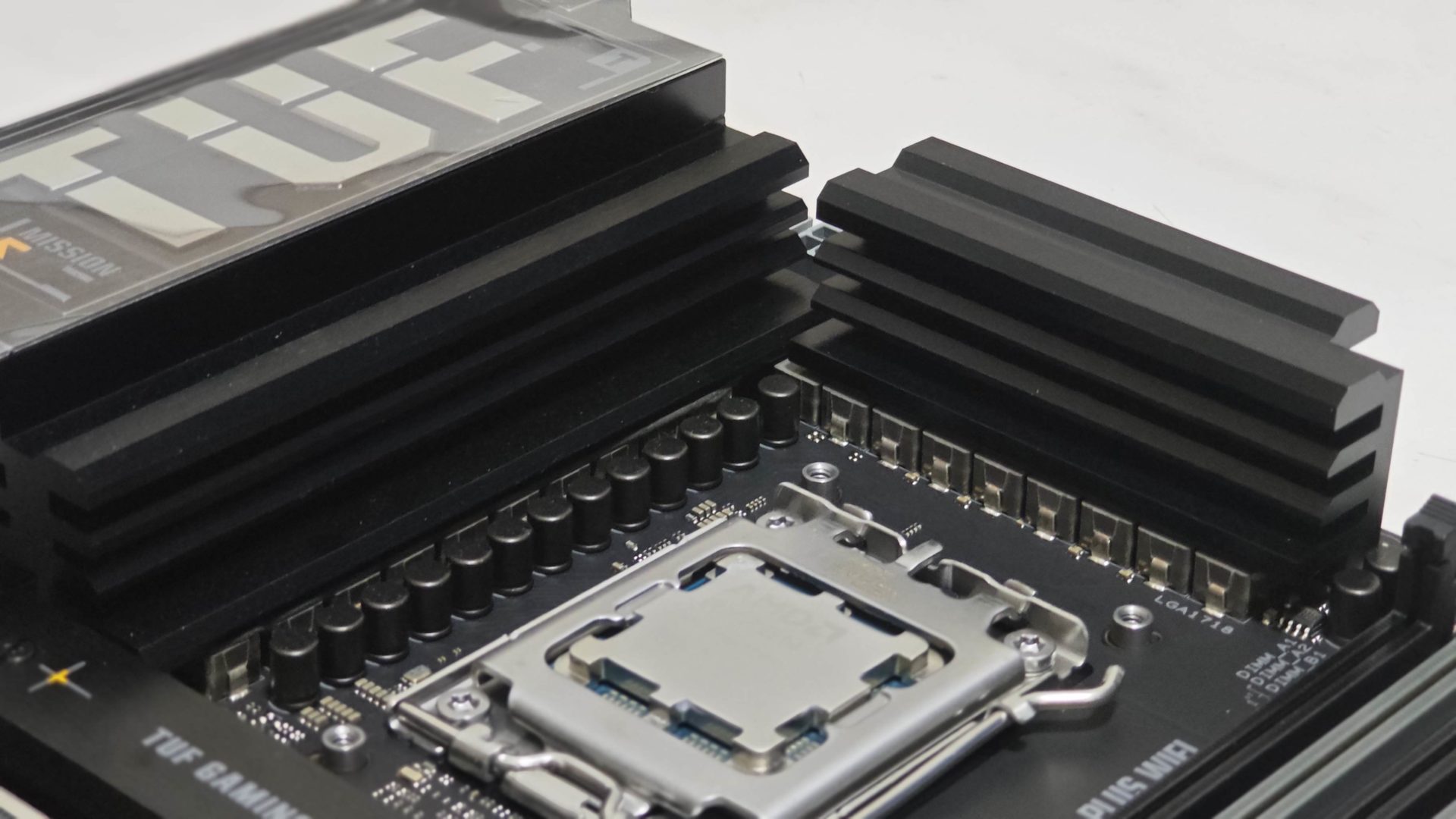

- Optimized Cooling Solutions: ASUS includes comprehensive cooling options such as VRM heatsinks, M.2 heatsinks, and hybrid fan headers, keeping thermals in check even during intense gaming sessions or heavy workloads.

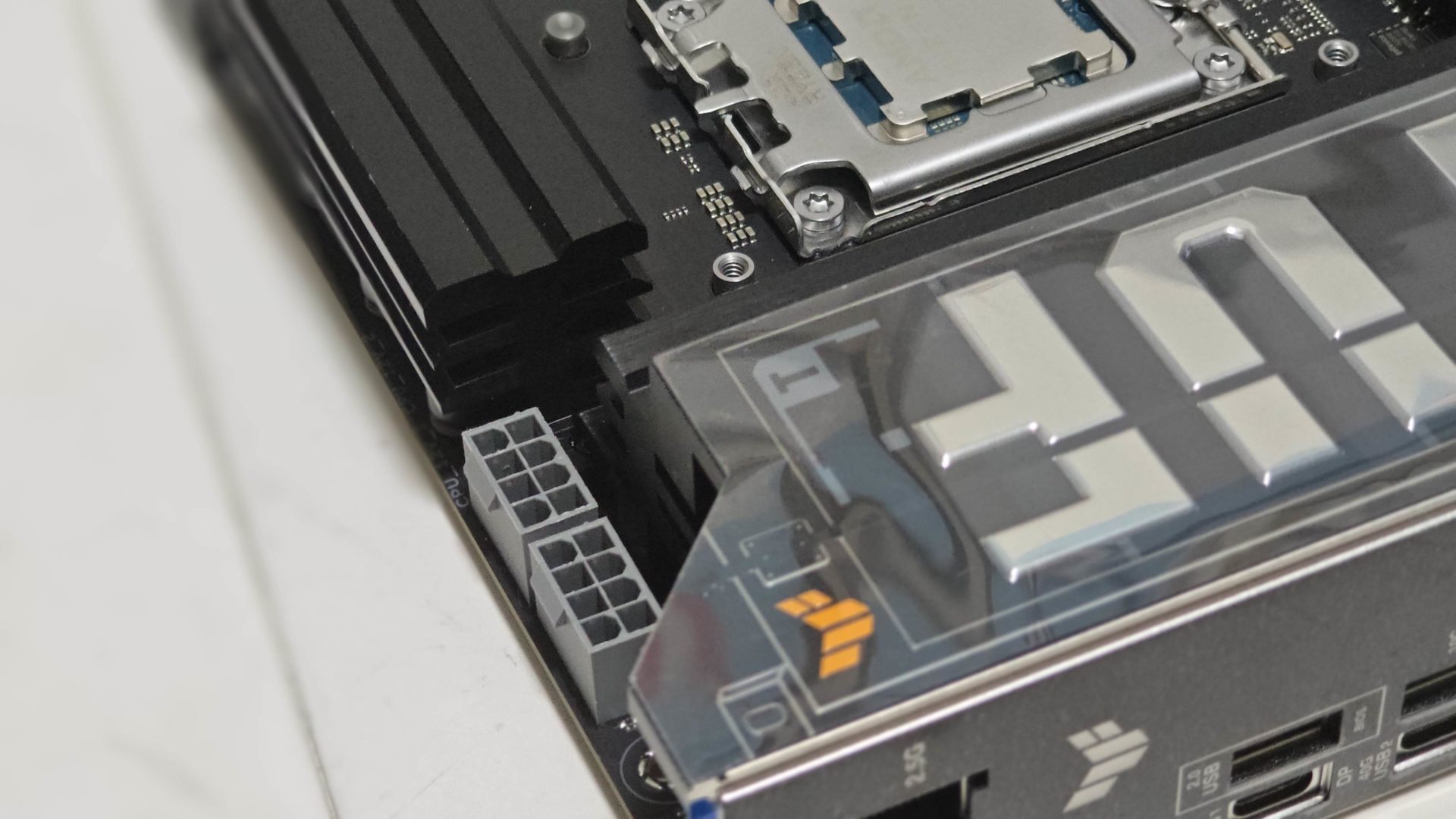

- Military-Grade Durability: TUF components, including reinforced slots, durable capacitors, and robust power delivery, ensure the motherboard can withstand extreme conditions and prolonged usage.

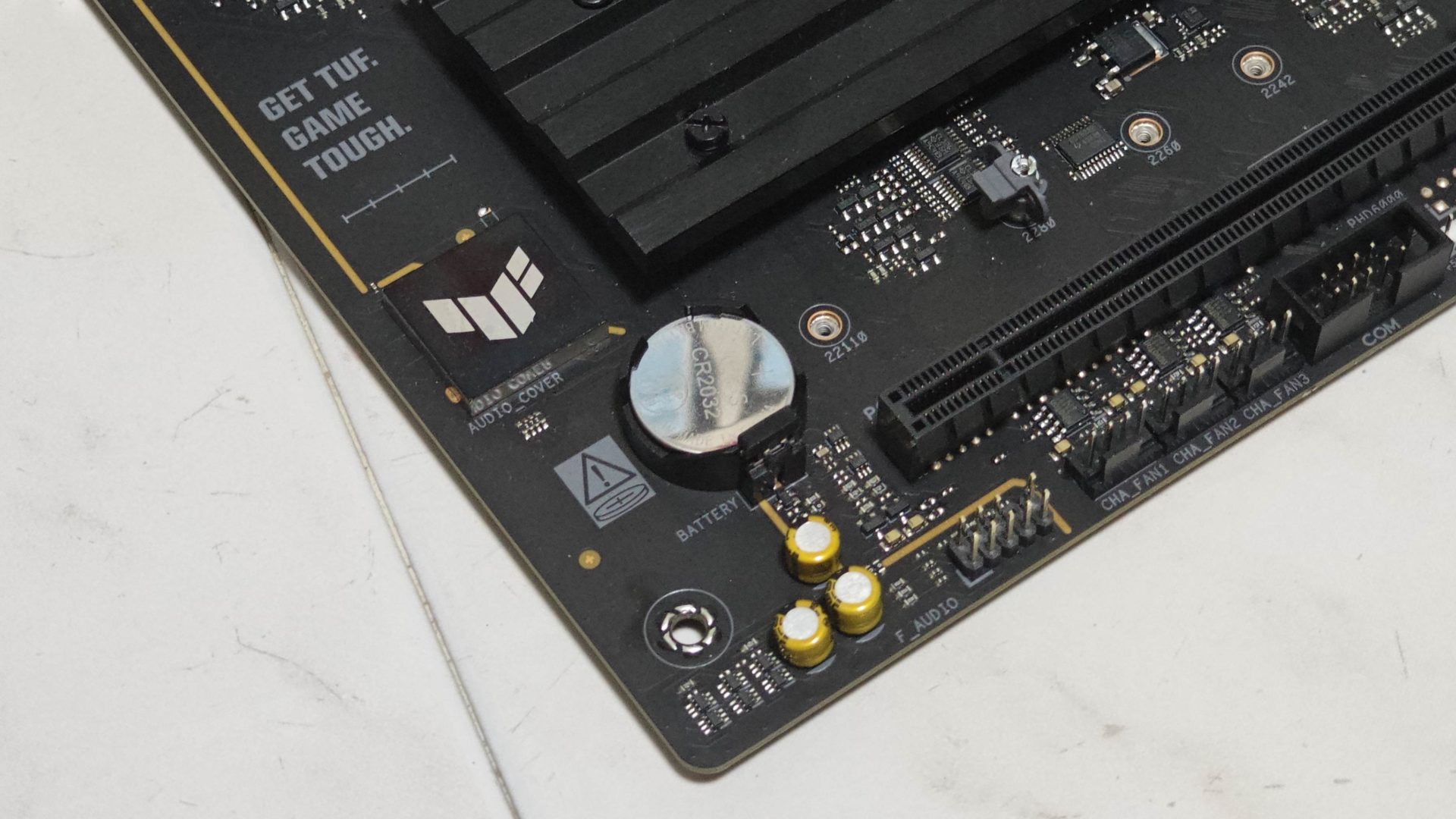

- Immersive Gaming Audio: With DTS Audio Processing and Realtek S1220A codec, the motherboard delivers crystal-clear sound, enhancing immersion for games, movies, and music.
- Customizable Aesthetics: Featuring ASUS Aura Sync RGB lighting, the TUF Gaming X870-PLUS WIFI allows users to personalize their builds with synchronized RGB effects across compatible devices.

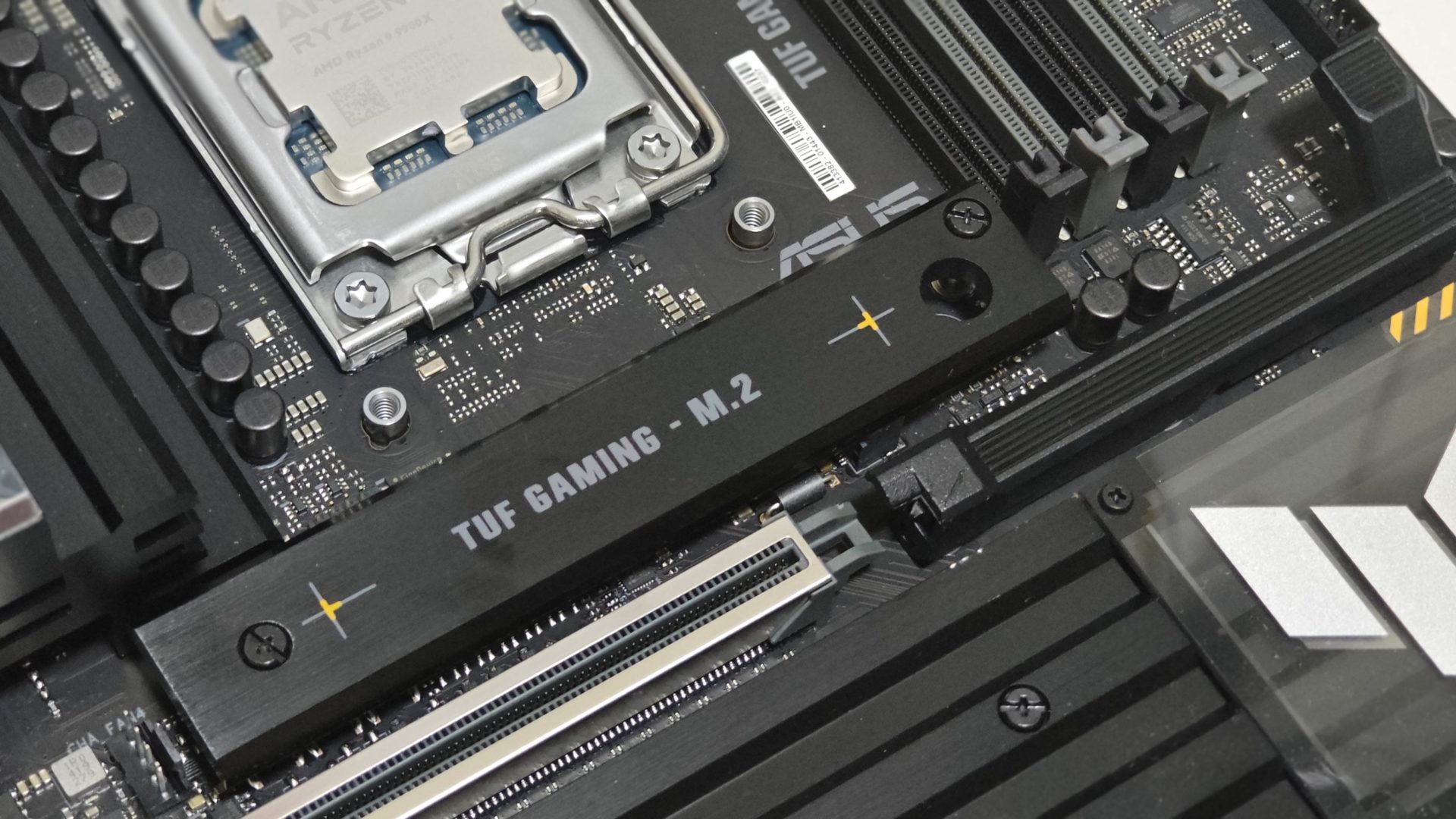

- User-Friendly Features: Tools like Q-Latch for M.2 drives and BIOS Flashback ensure easy installation and updates, making the motherboard suitable even for beginners.
ASUS TUF Gaming X670E-PLUS WIFI Motherboard
The ASUS TUF Gaming X670E-PLUS WIFI is a powerhouse motherboard designed to cater to gamers and PC enthusiasts seeking next-level performance, reliability, and future-proofing. Built on AMD’s X670E chipset, this motherboard supports the latest Ryzen 7000 Series processors and offers cutting-edge features such as PCIe 5.0 support for both GPU and storage, DDR5 memory compatibility, and robust power delivery. The TUF series’ hallmark durability ensures long-lasting performance, even under demanding workloads.
With features like Wi-Fi 6E, USB 4, and customizable RGB lighting, the X670E-PLUS WIFI is well-equipped to handle the latest in gaming and productivity demands. Its military-grade components, comprehensive cooling solutions, and user-friendly design make it an excellent choice for building a high-performance and reliable PC.
Key Features of the ASUS TUF Gaming X670E-PLUS WIFI:
- AMD Ryzen 7000 and 9000 Series Compatibility:
- Fully supports AMD’s latest Ryzen processors, delivering unparalleled performance for gaming, content creation, and multitasking.
- PCIe 5.0 for GPU and Storage:
- Offers PCIe 5.0 support for both graphics and storage, ensuring maximum compatibility and future-proofing for next-generation hardware.
- DDR5 Memory Support:
- Boosts bandwidth and power efficiency with support for the latest DDR5 memory, ideal for high-performance applications.
- Advanced Connectivity:
- Includes Wi-Fi 6E for high-speed wireless networking, Realtek 2.5Gb Ethernet for stable wired connections, and USB 4 for versatile peripheral support.
- Durable Build Quality:
- Features military-grade TUF components, reinforced PCIe slots, and a durable PCB design for exceptional reliability.
- Robust Power Design:
- Equipped with a 14+2 DrMOS power stage for stable and efficient power delivery, making it suitable for overclocking and demanding workloads.
- Comprehensive Cooling Solutions:
- Comes with large heatsinks for VRM and M.2 slots, hybrid fan headers, and advanced thermal controls to maintain optimal temperatures.
- Immersive Audio Experience:
- Realtek S1200A audio codec with DTS Audio Processing provides crystal-clear sound for gaming and entertainment.
- Customizable RGB Lighting:
- ASUS Aura Sync lets you synchronize RGB lighting across compatible components, creating a visually stunning build.
- Ease of Use and Upgrades:
- Includes features like Q-Latch for easy M.2 installation and BIOS Flashback for quick firmware updates, simplifying the building process.
The ASUS TUF Gaming X670E-PLUS WIFI combines the latest technologies and features with the hallmark durability of the TUF series, making it an ideal choice for gamers and professionals seeking a reliable, future-proof platform.
Comparison: ASUS TUF Gaming X870-PLUS WIFI vs. ASUS TUF Gaming X670E-WIFI
ASUS has consistently delivered high-quality motherboards for a variety of PC builds, and the TUF Gaming X870-PLUS WIFI and TUF Gaming X670E-WIFI are no exceptions. While both motherboards target gamers and performance enthusiasts, the X870 is positioned as a high-end model with the latest features, while the X670E offers a more affordable yet robust platform. Here’s how the two compare and which one might be better for your needs.
- Chipset and PCIe Support:
- TUF Gaming X870-PLUS WIFI: Features AMD’s flagship X870 chipset, offering dual PCIe 5.0 lanes for both GPU and storage. This ensures maximum compatibility with next-gen hardware and unparalleled performance.
- TUF Gaming X670E-WIFI: Based on the X670 Extreme chipset, it also supports PCIe 5.0 for GPU and storage, making it equally capable for future-proof builds but at a more budget-friendly price.
- Connectivity Options:
- X870: Equipped with Wi-Fi 7, USB 4, and Thunderbolt 4 compatibility, it delivers the most advanced networking and peripheral options.
- X670E: Comes with Wi-Fi 6E and USB 4 but lacks Thunderbolt support, focusing on essential connectivity rather than cutting-edge features.
- Power Delivery:
- X870: Boasts an 18+2 VRM power stage, optimized for extreme overclocking and handling high-end Ryzen processors.
- X670E: Features a 14+2 VRM power stage, which is excellent for gaming and productivity builds but slightly less robust for intense workloads and overclocking.
- Cooling Solutions:
- X870: Includes larger heatsinks, additional fan headers, and better thermal padding for heavy-use scenarios like overclocking or prolonged gaming.
- X670E: Provides solid cooling for most scenarios but is not as extensive as the X870’s premium thermal design.
- Price Point:
- X870-PLUS WIFI: Priced at a premium due to its advanced feature set and top-tier chipset.
- X670E-WIFI: Positioned as a more affordable option, offering comparable features for users who don’t need the X870’s cutting-edge advancements.
Which is Better for Different Scenarios?
- Choose the X870-PLUS WIFI if:
- You need the absolute best PCIe 5.0 support for both GPU and storage for a high-performance gaming or workstation build.
- You require advanced connectivity options like Wi-Fi 7 and Thunderbolt 4 for professional workflows or next-gen peripherals.
- You plan to overclock high-end Ryzen CPUs and need a motherboard with superior power delivery and thermal management.
- Budget is not a primary concern, and you want the most future-proof platform available.
- Choose the X670E-WIFI if:
- You are building a high-performance gaming PC or productivity machine with current-generation or near-future hardware.
- You want PCIe 5.0 support for GPU and storage without paying the premium for extras like Wi-Fi 7 or Thunderbolt.
- You are focused on getting excellent performance for gaming and multitasking at a more affordable price.
- Overclocking and extreme workloads are not a priority for your build.
Recommendation: Which is the Better Choice?
The TUF Gaming X670E-WIFI stands out as the more practical choice for most users. It delivers PCIe 5.0 support, strong power delivery, and advanced connectivity, all at a lower price point. This makes it ideal for gamers and productivity users looking to build a reliable, high-performance system without overinvesting in features they may not use immediately.
However, if you’re an enthusiast or professional looking to maximize your system’s potential with features like Thunderbolt 4, Wi-Fi 7, or extensive overclocking capabilities, the X870-PLUS WIFI is the clear winner despite its higher price.
Conclusion: For most scenarios, the TUF Gaming X670E-WIFI is the better value proposition, offering cutting-edge performance at a more accessible price. That said, the X870-PLUS WIFI is a superior choice for those who demand the best of the best and can justify the premium cost for future-proofing and additional features. Choose based on your specific needs and budget.
