ASUS showcases ESC500 G4 SFF, ESC700 G3
and ESC4000 G3 at EA Symposium 2017

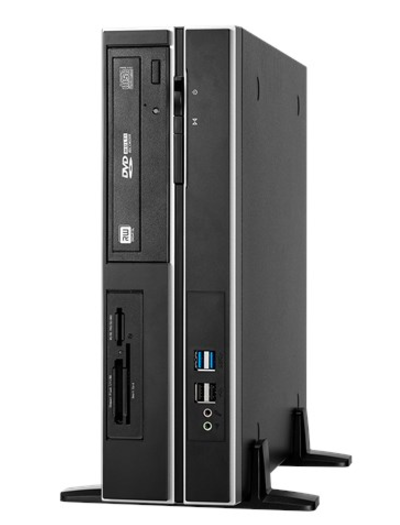

1. ESC500-G4 SFF – Small Form Factor workstation with the latest processing, graphics and storage technology
Key points:
Drive three independent displays
simultaneously
Drive three independent displays
simultaneously
The ESC500 G4 gives users the ability to multitask on up to three
independent displays simultaneously through HDBI, DisplayPort, DVI-D, VGA ports
in a compatible latest-generation Intel® processor.
independent displays simultaneously through HDBI, DisplayPort, DVI-D, VGA ports
in a compatible latest-generation Intel® processor.
ISV
Certified
Certified
The ESC G4 SFF workstation gets most popular ISV (Independent
Software Vendor) certified with great performance and productivity.
Software Vendor) certified with great performance and productivity.
Certified software applications include:
Built-in
Dual Intel I120 Server-Class Gigabit LAN
Dual Intel I120 Server-Class Gigabit LAN
For more reliable networking, the ESC500 G4
SFF workstation features the latest server class built-in dual Intel® Gigabit LAN. This
leads to lower CPU utilisation and temperature, achieving outstanding
performance as well as better support for diverse operating systems.
SFF workstation features the latest server class built-in dual Intel® Gigabit LAN. This
leads to lower CPU utilisation and temperature, achieving outstanding
performance as well as better support for diverse operating systems.
2.ESC700-G3 – STREAMLINE AIRFLOW DESIGN WITH SUPREME POWER SOLUTION
Key points:
The world’s fastest deskside
deep-learning machine
The world’s fastest deskside
deep-learning machine
Deep-learning is at the forefront of computing innovation. It
leverages both machine-learning and artificial intelligence (AI) technologies
to discover new knowledge from big data. ASUS has chosen the X99-E WS to be
part of the ESC700-G3 tower workstation for its delivery of genuine 4-way x16
graphics power, freedom to explore multiple network architectures, and
accelerated dataset manipulation.
leverages both machine-learning and artificial intelligence (AI) technologies
to discover new knowledge from big data. ASUS has chosen the X99-E WS to be
part of the ESC700-G3 tower workstation for its delivery of genuine 4-way x16
graphics power, freedom to explore multiple network architectures, and
accelerated dataset manipulation.
Streamline-airflow
design with CPU and memory slots in a parallel arrangement
design with CPU and memory slots in a parallel arrangement
ESC700 G3 delivers superior flexibility and performance with Intel®
2011-v3 socket, eight DDR4 DIMM slots, and five PCI-E 3.0×16 slots.
Furthermore, ESC700 G3’s layout is designed for optimal airflow, with the
processor and memory slots placed in a parallel arrangement, providing
optimized cooling for increased efficiency.
2011-v3 socket, eight DDR4 DIMM slots, and five PCI-E 3.0×16 slots.
Furthermore, ESC700 G3’s layout is designed for optimal airflow, with the
processor and memory slots placed in a parallel arrangement, providing
optimized cooling for increased efficiency.
Supreme Power Solutions
ASUS ESC700 G3 couples innovative thinking with premium components to
deliver industry-leading power efficiency. It is carefully engineered with Beat
Thermal Chokes made of highly conductive and efficient gold-treating coating
for minimal-loss power delivery. For the latest workstation motherboard, ASUS
introduce the industry’s most durable 12K solid capacitors, and exclusive ASUS
ProCool power connectors.
deliver industry-leading power efficiency. It is carefully engineered with Beat
Thermal Chokes made of highly conductive and efficient gold-treating coating
for minimal-loss power delivery. For the latest workstation motherboard, ASUS
introduce the industry’s most durable 12K solid capacitors, and exclusive ASUS
ProCool power connectors.
The leading IO Scalability
Evolve your storage speed with SATA Express. SATA Express provides up to
10Gbit/s data-transfer speeds from two PCIE 2.0 lanes, resolving the higher
bandwidth request in the near future. The current SSDs consume up to 550MB/s,
which is close to saturation point for SATA 6Gbit/s connections.
10Gbit/s data-transfer speeds from two PCIE 2.0 lanes, resolving the higher
bandwidth request in the near future. The current SSDs consume up to 550MB/s,
which is close to saturation point for SATA 6Gbit/s connections.
Furthermore, with 2 x PCI-Express 2.0 bandwidth, M.2 supports up to 10
Gbit/s data transfer speeds. It is the perfect choice for an operating system
or application drive, making your whole PC or professional applications work as
fast as possible.
Gbit/s data transfer speeds. It is the perfect choice for an operating system
or application drive, making your whole PC or professional applications work as
fast as possible.
3. ESC4000 – G3: Green500
Champion Successor
Champion Successor
Key points:
8+2 Flexible Expansion Slots for 4 GPUs
and divers high bandwidth interconnection HBA Support
8+2 Flexible Expansion Slots for 4 GPUs
and divers high bandwidth interconnection HBA Support
The ESC4000 G3 supports up to eight PCI-E Gen3 x16 slots in 2U for
high density computing and high expandability, compatible with versatile expansion
cards, especially in supporting up-to-date Intel® Xeon Phi™ series, NVIDIA Tesla
and GRIDTM Family, as well as AMD FirePro S Series of GPU accelerators.
Initially, high-density computing is designed specifically to pack greater
processing power into a rack. In ESC4000 G3, it can carry up to 4 double-deck
GPUs offering extreme high density and parallel computing power.
high density computing and high expandability, compatible with versatile expansion
cards, especially in supporting up-to-date Intel® Xeon Phi™ series, NVIDIA Tesla
and GRIDTM Family, as well as AMD FirePro S Series of GPU accelerators.
Initially, high-density computing is designed specifically to pack greater
processing power into a rack. In ESC4000 G3, it can carry up to 4 double-deck
GPUs offering extreme high density and parallel computing power.
Intelligent
System Fan III for improved airflow and lower running costs
System Fan III for improved airflow and lower running costs
With intelligent system fan III, independent smart fans provide cooling
for each area of the GPU and CPU separately, and a redundant fan design for GPU
area provides an extra thermal back-up solution. Intelligent system fan III
offers dedicated airflow towards GPU and GPU as well as offering flexibility in
fan allocation.
for each area of the GPU and CPU separately, and a redundant fan design for GPU
area provides an extra thermal back-up solution. Intelligent system fan III
offers dedicated airflow towards GPU and GPU as well as offering flexibility in
fan allocation.
1 +
1 Platinum Redundant PSUs
1 Platinum Redundant PSUs
The ESC4000 G3 is equipped with a 2000W/1620W 80 PLUS Platinum level
redundant power supply with VR power efficiency up to 95% for energy savings,
while the hot swappable design reduces power loss, improves power efficiency
and save more TCO for users.
redundant power supply with VR power efficiency up to 95% for energy savings,
while the hot swappable design reduces power loss, improves power efficiency
and save more TCO for users.
FIND OUT
MORE
MORE
SPECIFICATIONS
1. ESC500-G4 SFF (Small Form Factor
Workstation)
Workstation)
|
Processor
/ System Bus |
Intel® Pentium™ processors
Intel® Core™ i7/i5/i3 processors Intel® Xeon® processor E3-1200 v5 product family Intel®Xeon®processor E3-1200 v6 product family Intel® Celeron™ processors 1 x Socket LGA1151 |
|
Core
Logic |
Intel®
C236 Chipset |
|
Memory
|
Memory
Size : 8GB, 16GB UDIMM * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. * Refer to support page for more information Capacity : Maximum up to 64GB UDIMM Memory Type : 2400 /2133 non ECC and with ECC UDIMM DDR4 |
|
Expansion
Slots |
PCIEX1_1: PCI-E x1
slot, x1 Gen3 Link, from PCH PCIEX16_1: PCI-E x16 slot, x16 Gen3 Link PCIEX8_1: PCI-E x8 slot, x4 Gen3 Link, from PCH |
|
Storage
|
SATA
Controller : 8 x SATA3 6Gb/s ports 7 x SATA3 6Gb/s ports + 1 x M.2 connector *1 or Intel® C236 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 10, 1, 5 )
*1 M.2 is Gen3x4, up
to 22110 |
|
HDD
Bays |
2 x Internal 3.5″
HDD Bays (Or switch to 2.5″ SSD with cage by requests) |
|
Auxiliary
Storage FDD/CD/DVD |
1 x
5.25″ media bays (Options: No DVD-ROM/DVD-RW) |
|
Networking
|
2 x
Intel® I210AT |
|
Front I/O Ports
|
2 x USB 3.0
2 x USB 2.0
1 x Headphone port
1 x Microphone port
|
|
Rear
I/O Ports |
2 x USB 3.0
ports 2 x USB 2.0 ports 1 x Optical S/PDIF Out 1 x HDMI 1 x DisplayPort 2 x RJ-45 port 1 x DVI-D 1 x 8-channel Audio I/O (6 x Audio jacks) 1 x USB Flashback button |
|
OS
Support |
Windows® 10
Windows® 7 64-bit *2 Windows® 7 32-bit *2
*2
Only preloaded Win10 (Win7 is only for recovery) |
|
Regulatory
Compliance |
CE,
FCC(Class B), BSMI, Energy Star |
|
Dimensions
|
410
mm * 96 mm * 330 mm |
|
Weight
|
6 Kg
|
|
Power
Supply |
250W 80PLUS Single
Power Supply (100-240Vac, 6-3A,50/60Hz, Class I) |
|
Accessory
Box |
1 x ESC500 G4 SFF
Support CD 1 x Windows 10 Recovery DVD (for OS bundled SKU) 1 x Windows 7 Recovery DVD (for OS bundled SKU) 1 x AC Power Cable 1 x VGA Support CD (for Windows 10) 1 x VGA Support CD (for Windows 7) 1 x DisplayPort to VGA Dongle (Only for Taiwan location) |
|
Optional
Items |
Smart Card Reader
DVD-RW Optional Anti-Virus CD pack |
|
Environment
|
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90%
( Non condensing) |
2. ESC700-G3
|
Operating
System |
Windows 10 Pro
Windows 7 Ultimate SP1
|
|
Processor / System Bus
|
1 x Socket R3 (LGA 2011-3)
Intel® Xeon® processor E5-1600 v4 product
family
Intel® Xeon® processor E5-1600 v3 product
family
Intel® Xeon® processor E5-2600 v4 product
family
Intel® Xeon® processor E5-2600 v3 product
family(135W)
Intel® Core™ i7 Processors for LGA
2011-3 Socket |
|
Core
Logic |
Intel®
X99 Express Chipset |
|
Memory
|
Total Slots : 8
(4-channel per CPU, 8 DIMM per CPU)
Capacity :
Maximum up to 128GB UDIMM/Maximum up to 128GB RDIMM
Memory Type :
DDR4 2400 /2133 non ECC and with ECC
Memory Size :
16GB, 8GB, 4GB, 2GB RDIMM/UDIMM
* Please refer to ASUS server AVL for the
latest update
* Actual memory frequency differs
from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
|
Expansion Slots
|
40-Lane CPU-
5 x PCI Express 3.0/2.0 x16 Slots (x16,
x16/x16, x16/x16/x8, x8/x8/x8/x8/x8 Mode)*
28-Lane CPU-
5 x PCI Express 3.0/2.0 x16 Slots (x16,
x16/x8, x16/x8/x4, x8/x8/x8/x4 Mode)*
*When
Installing 28-Lane CPU,PCIe 3.0/2.0x16_4 cannot Work |
|
Storage
|
SATA Controller :
Intel® X99 Express Chipset
8 x SATA3 6Gb/s ports
1 x SATA Express port(s)
Intel® Rapid Storage Technology
Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SATA Controller :
Intel® X99 Express Chipset
1 x M.2 connector (2280/2260)
|
|
HDD Bays
|
3 * Internal 3.5″ HDD Bays
1 * Internal 2.5″ HDD/SSD
Bays |
|
Auxiliary Storage FDD/CD/DVD
|
2 x 5.25″ media bays
(Options: No ODD/DVD-RW)
|
|
Networking
|
2 x
Intel® I210AT |
|
Front I/O Ports
|
2 x USB 3.0
2 x USB 2.0
1 x Headphone port
1 x Microphone port
|
|
Rear I/O Ports
|
1 x S/PDIF Out (Optical)
1 x USB BIOS Flashback Button
2 x RJ-45 ports
2 x USB 3.0 ports
2 x USB 2.0 ports
8 x Channel Audio I/O
|
|
OS Support
|
Windows® 10
Windows® 8.1 64-bit
Windows® 8 64-bit
Windows® 7 Ultimate SP1 32-bit
Windows® 7 Ultimate SP1 64-bit
*(Subject
to change without any notice) |
|
Regulatory
Compliance |
BSMI,
CCC, CE, Energy Star |
|
Dimensions
|
423mm x
190mm x 435mm |
|
Weight
|
11 kg
|
|
Power Supply
|
700W 80PLUS Single Power Supply, Gold
100-240V, 10-5A, 60/50Hz, Class I
|
|
Accessory Box
|
1 x ESC700 G3 Support CD
1 x Windows 7 Professional 32/64bit Recovery
DVD (for OS bundled SKU)
1 x AC Power Cable
|
|
Optional Items
|
Smart Card Reader
Optional Anti-Virus CD pack
|
|
Motherboard
|
ASUS
X99-WS/SYS Workstation board |
3. ESC4000 G3 (Green500 Champion
Successor)
Successor)
|
Processor
/ System Bus |
2 x Socket R3 (LGA 2011-3)
Intel® Xeon® processor E5-2600 v4 product
family (145W)
Intel® Xeon® processor E5-2600 v3 product family(145W)
QPI 6.4 / 8.0 / 9.6 GT/s
|
|
Core
Logic |
Intel®
C612 PCH |
|
Memory
|
Total Slots : 16
(4-channel per CPU, 8 DIMM per CPU)
Capacity :
Maximum up to 1024GB LRDIMM
Memory Type :
DDR4 2400 /2133 /1866 /1600 /1333 RDIMM*1
DDR4 2400 /2133 /1866 /1600 /1333 LRDIMM*1
DDR4 2400 /2133 /1866 /1600 /1333 NVDIMM*1
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
* Please refer to ASUS server AVL for the
latest update
* Actual memory frequency differs
from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
|
Expansion
Slots |
Total:
8+2
Full-length/Full-height
8*
PCI-E 3.0 x16 (4 at x16 link or 8 at x8 link)
(Slot
CPU1_PCIE2, CPU1_PCIE4, CPU2_PCIE1, CPU2_PCIE3 auto switch to x8 link if slot CPU1_PCIE1, CPU1_PCIE3, CPU2_PCIE2, CPU2_PCIE4 is occupied) Half-length/Low-profile and ASUS proprietary form factor
1*PCI-E
3.0×24 (support with riser card)
(1*PCI-E
x16 (x8 Gen4 Link) and 1*PCIEx8 (x8 Gen3 Link)) |
|
Storage
|
SATA Controller :
Intel® C612
8 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology
Enterprise(RSTe) (For Windows)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (For Linux/Windows)
(Support Software RAID 0,1,10)
SAS Controller :
ASUS
Pike II 3008 8-port SAS HBA Card (Optional)
ASUS
Pike II 3108 8-port SAS HW RAID card (Optional)
Support
with riser card |
|
HDD
Bays |
8 x
Hot-swap 3.5” HDD Bays |
|
Auxiliary Storage FDD/CD/DVD
|
1 x Slim-type optical drive bay
(Options:
No Device/DVD-RW)
(DVD-RW
default for North America) |
|
Networking
|
2 x
Intel® I210AT + 1 Mgmt LAN |
|
Front I/O Ports
|
2 x USB 2.0
|
|
Rear I/O Ports
|
3 x RJ-45 ports
2 x USB 3.0 ports
1 x VGA port
|
|
OS Support
|
Windows® Server 2012 R2
Windows® Server 2012
Windows® Server 2008 Enterprise R2 SP1 64-bit
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
|
|
Management
Solution |
ASWM
Enterprise
Default
1 x ASMB8 – iKVM for KVM-over-Internet |
|
Dimensions
|
750mm x
444mm x 87mm (2U) |
|
Form
Factor |
2U
|
|
Power
Supply |
1+1
Redundant 2000W 80PLUS Platinum Power Supply /
1+1
Redundant 1620W 80PLUS Platinum Power Supply |
|
Motherboard
|
ASUS Z10PG-D16
Server Board |
For the LATEST tech updates,
FOLLOW us on our Twitter
LIKE us on our FaceBook
SUBSCRIBE to us on our YouTube Channel!
