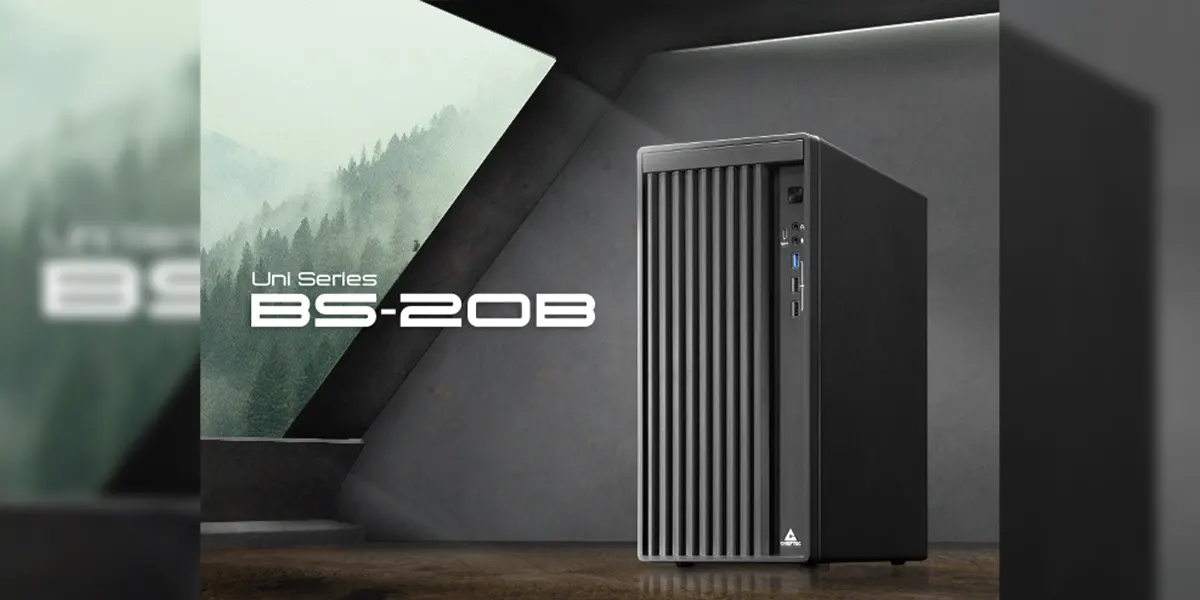

For the mini tower PC case, CHIEFTEC has a new option for you guys – its the new UNI series BS-20B-OP PC chassis.
Mini-tower PC cases are always about efficiency, and as expected, the BS-20B-OP offers a compact footprint with a total volume of less than 20 liters. Despite its size, it accommodates full mATX motherboards, standard ATX power supplies, ultra-slim optical drives, and graphics cards up to 270mm in length.

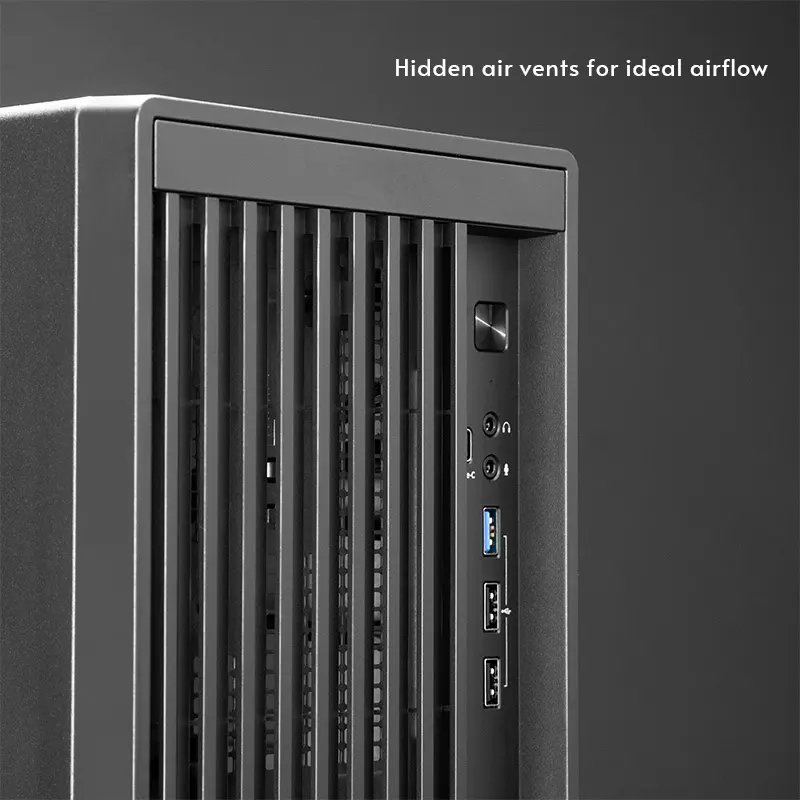

The front panel includes essential I/O options for flexible connectivity, while concealed air vents are strategically placed to maintain strong airflow and efficient system cooling.
Here’s a breakdown of the key specifications:
- Motherboard Compatibility: Mini ITX, mATX
- Dimensions / Weight: 329 x 170 x 408mm / 4.49kg
- External Drive Bay: 1 x 5.25″ ultra-slim 9.5mm ODD
- Internal Drive Bays: 2 x 3.5″ HDD or 2 x 2.5″ SSD or 1 x 3.5″ HDD + 1 x 2.5″ SSD
- Expansion Slots: 4
- Front I/O Ports: 1 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C, 2 x USB 2.0, Audio-out (AZALIA / HD-Audio), Mic-In
- Cooling Support:
- Front: 1 x 80mm slim fan (80 x 80 x 10mm)
- Rear: 1 x 90mm fan (pre-installed)
- Max CPU Cooler Height: 143mm
- Max GPU Length: 270mm
- Warranty: 24 months
